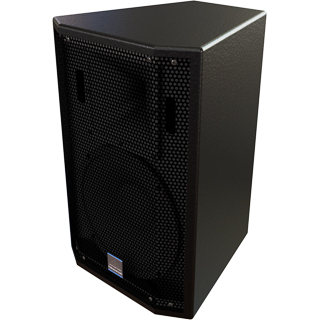

AC-10™
Description[±]
The Altar Clarity™ Series loudspeakers are a sound reinforcement solution for the 200 - 400 seat House of Worship, smaller meeting / presentation facilities, and similar spaces where live music reproduction demands a higher output performance. Manufactured in the USA, the AC (Altar Clarity) Series loudspeakers use 13-ply Baltic Birch enclosures and provide component concealing grilles for visual aesthetics and protection. Color options include black, white, and unfinished (for painting or staining) for all models.
The AC-10 employs a true, two-pole crossover and a pattern-controlled rotatable horn for accurate and smooth sounding musical performances and the spoken word. The Altar Clarity™ AC-10 is available in several versions to accommodate your specific application: no handles or pole mount, with U-Bracket mounting, with three 2 x 2 flypoints, or equipped for wall mounting.
A comprehensive range of accessories, including eyebolts, wall mount brackets, crank style speaker stands, adjustable speaker stands, dual speaker mount poles, and both crank style and adjustable speaker poles are available to make each installation easy and complete.
Specifications[±]
Power Handling : | |
(RMS): | 150 Watts |
(Program): | 300 Watts |
(Peak to Peak): | 600 Watts |
Frequency Response: | 70 Hz - 18 kHz |
Sensitivity (1W @ 1M): | 99 dB SPL |
Power Configuration: | Bi-Amp |
Nominal Impedance: | 8 ohms |
Dispersion: | Horizontal 90° |
Vertical 40° | |
Components: | |
Low Frequency Driver | 10" Cone |
Magnet Material | Ferrite |
Cone Material | Weather-Treated paper |
Components: | |
High Frequency Driver | 1" Compression Driver |
High Frequency Horn | 90° x 40° |
Crossover Type: | Passive |
Crossover Frequency: | 2.8 kHz |
Enclosure Type: | Trapezoidal 15° |
Enclosure Material: | 13-ply Baltic Birch |
Enclosure Construction: | Dado and Rabbet Joinery |
Enclosure Finish: | Textured Black |
Grille: | Cloth Covered, Powder-Coated, Perforated Steel |
Connectors: | 5-Way Binder |
Product Dimensions: | |
(inches) | H - 19.25" W - 12.63" D - 12.75" |
(millimeters) | H - 488.95 W - 320.80 D - 323.85 |
Product Weight: | 26.5 Lbs / 11.9 Kgs |
Shipping Dimensions: | |
(inches) | H -22.25" W -16.75" D -16.00" |
(millimeters) | H -565.15 W -425.45 D -406.40 |
Shipping Weight: | 32.5 Lbs / 14.6 Kgs |
Available Finish Configurations [±]
AC-10-3F | |
With Three 2 x 2 Fly Points | |
AC-10-M10 | |
Wall Mount Bracket - 50 # Capacity | |
AC-10-O | |
No Handle or Pole Mount | |
AC-10-U | |
With U-Bracket |
