Available Finish Colors
Black

Unfinished

White

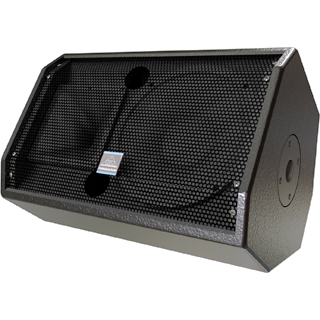

AC-10M™

Description[±]

The Altar Clarity™ Series loudspeakers are a sound reinforcement solution for the 200 - 400 seat House of Worship, smaller meeting / presentation facilities, and similar spaces where live music reproduction demands a higher output performance. Manufactured in the USA, the AC (Altar Clarity) Series loudspeakers use 13-ply Baltic Birch enclosures and provide component concealing grilles for visual aesthetics and protection.

The AC-10M employs a true, two-pole crossover and a pattern-controlled rotatable horn for accurate and smooth sounding musical performances and the spoken word. The Altar Clarity™ AC-10M is available without handles or pole mount. Color options include black, white, and unfinished (for painting or staining) for all models.

Specifications[±]

Power Handling :
(RMS):	200 Watts
(Program):	400 Watts
(Peak to Peak):	800 Watts

Frequency Response:	60 Hz - 18 kHz

Sensitivity (1W @ 1M):	98 dB SPL

Nominal Impedance:	8 ohms

Dispersion:	Horizontal 90°
	Vertical 40°

Components:
Low Frequency Driver	10" Cone
Magnet Material	Ceramic
Cone Material	Weather-Treated paper


Components:
High Frequency Driver	1" Compression Driver

Crossover Type:	Passive

Crossover Frequency:	2.8 kHz

Enclosure Type:	Multi-angle

Enclosure Material:	13-ply Baltic Birch

Enclosure Construction:	Dado and Rabbet Joinery

Enclosure Finish:	Textured Black

Grille:	Cloth Covered, Powder-Coated, Perforated Steel

Connectors:	Two 1/4" & Two SpeakonÃ

Product Dimensions:
(inches)	H - 19.00" W - 12.50" D - 12.25"
(millimeters)	H - 482.60 W - 317.50 D - 311.15

Product Weight:	21.5 Lbs / 9.7 Kgs

Shipping Dimensions:
(inches)	H -21.00" W -14.48" D -14.50"
(millimeters)	H -533.40 W -367.79 D -368.30

Shipping Weight:	25.0 Lbs / 11.3 Kgs

Available Finish Configurations [±]

	AC-10M-O
	No Handle or Pole Mount

	AC-10M-HP
	With handles and pole mount

Compatible Accessories
78-023 Mount Metal External Adaptor for 1.38" (35mm) Poles
