Technical Specifications (PDF)


Available Finish Colors

Black

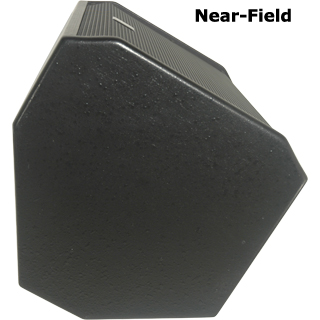

AC-10MA™

Description[±]

The Altar Clarity™ Series loudspeakers are a sound reinforcement solution for the 200 - 400 seat House of Worship, smaller meeting / presentation facilities, and similar spaces where live music reproduction demands a higher output performance. Manufactured in the USA, the AC (Altar Clarity) Series loudspeakers use 13-ply Baltic Birch enclosures and provide component concealing grilles for visual aesthetics and protection.

The Altar Clarity™ AC-10MA active loudspeaker has the added benefit of power amplification that is optimized for the enclosure along with streamlined system cabling. The amp’s multichannel inputs include an XLR balanced microphone input, a ¼-inch line input, and RCA inputs for use with CD players and similar equipment. Any two sources can be mixed internally. With their durable, built-in power amplifiers, the AC Series active loudspeaker enclosures make a great sounding, versatile sound reinforcement solution.

The AC-10MA employs a true, two-pole crossover and a pattern-controlled rotatable horn for accurate and smooth sounding musical performances and the spoken word. The Altar Clarity™ AC-10MA is available without handles or pole mount. Color options include black, white, and unfinished (for painting or staining) for all models.

Specifications[±]

Power Handling :

(RMS):

150 Watts

(Program):

300 Watts

(Peak to Peak):

600 Watts

Frequency Response:

60 Hz - 18 kHz

Sensitivity (1W @ 1M):

98 dB SPL

Nominal Impedance:

8 ohms

Dispersion:

Horizontal 90°

Vertical 40°

Components:



Low Frequency Driver

10" Cone

Magnet Material

Ceramic

Cone Material

Weather-Treated paper

Components:



High Frequency Driver

1" Compression Driver

Crossover Type:

Passive

Crossover Frequency:

2.8 kHz

Enclosure Type:

Multi-angle

Enclosure Material:

13-ply Baltic Birch

Enclosure Construction:

Dado and Rabbet Joinery

Enclosure Finish:

Textured Black

Grille:

Cloth Covered, Powder-Coated, Perforated Steel

Connectors:

Two 1/4" & Two Speakon®

Product Dimensions:

(inches)

H - 13.75" W - 18.75" D - 13.38"

(millimeters)

H - 349.25 W - 476.25 D - 339.85

Product Weight:

35.0 Lbs / 15.8 Kgs

Available Finish Configurations [±]

AC-10MA-O

No Handle or Pole Mount

AC-10MA-HP

With handles and pole mount
