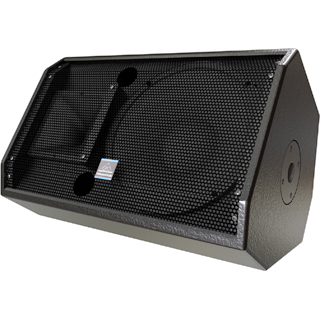

AC-12M™

Description[±]

The Altar Clarity™ Series loudspeakers are a sound reinforcement solution for the 200 - 400 seat House of Worship, smaller meeting / presentation facilities, and similar spaces where live music reproduction demands a higher output performance. Manufactured in the USA, the AC (Altar Clarity) Series loudspeakers use 13-ply Baltic Birch enclosures and provide component concealing grilles for visual aesthetics and protection.

The AC-12M employs a true, two-pole crossover and a pattern-controlled rotatable horn for accurate and smooth sounding musical performances and the spoken word. The Altar Clarity™ AC-12M is available without handles or pole mount. Color options include black, white, and unfinished (for painting or staining) for all models.

Specifications[±]

Power Handling :
(RMS):	300 Watts
(Program):	600 Watts
(Peak to Peak):	1200 Watts

Frequency Response:	50 Hz - 18 kHz

Sensitivity (1W @ 1M):	98 dB SPL

Nominal Impedance:	8 ohms

Dispersion:	Horizontal 90°
	Vertical 40°

Components:
Low Frequency Driver	12" Cone
Magnet Material	Ferrite
Cone Material	Weather-Treated paper


Components:
High Frequency Driver	1" Compression Driver

Crossover Type:	Passive

Crossover Frequency:	2.5 kHz

Enclosure Type:	Multi-angle

Enclosure Material:	13-ply Baltic Birch

Enclosure Construction:	Dado and Rabbet Joinery

Enclosure Finish:	Textured Black

Grille:	Powder-Coated, Perforated Steel

Connectors:	Two 1/4" & Two SpeakonÃ

Product Dimensions:
(inches)	H - 22.00" W - 14.25" D - 13.50"
(millimeters)	H - 558.80 W - 361.95 D - 342.90

Product Weight:	30.0 Lbs / 13.5 Kgs

Shipping Dimensions:
(inches)	H -24.50" W -16.00" D -15.50"
(millimeters)	H -622.30 W -406.40 D -393.70

Shipping Weight:	34.0 Lbs / 15.3 Kgs

Available Finish Configurations [±]

	AC-12M-O
	No Handle or Pole Mount

	AC-12M-HP
	With handles and pole mount

Compatible Accessories
78-023 Mount Metal External Adaptor for 1.38" (35mm) Poles
