Available Finish Colors
Black

Unfinished

White

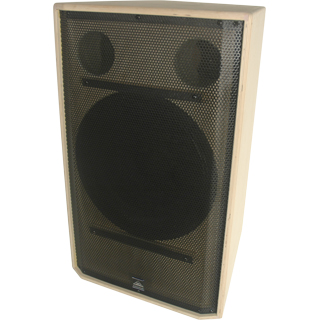

AC-15S™

Description[±]

The Altar Clarity™ Series loudspeakers are a sound reinforcement solution for the 200 - 400 seat House of Worship, smaller meeting / presentation facilities, and similar spaces where live music reproduction demands a higher output performance. Manufactured in the USA, the AC (Altar Clarity) Series loudspeakers use 13-ply Baltic Birch enclosures and provide component concealing grilles for visual aesthetics and protection.

The Altar Clarity™ AC-15S is available without handles or polemount, or with three 2 x 2 flypoints. Color options include black, white, and unfinished (for painting or staining) for all models.

A comprehensive range of accessories, including eyebolts, wall mount brackets, crank style speaker stands, adjustable speaker stands, dual speaker mount poles, and both crank style and adjustable speaker poles are available to make each installation easy and complete.

Specifications[±]

Power Handling :
(RMS):	300 Watts
(Program):	600 Watts
(Peak to Peak):	1200 Watts

Frequency Response:	40 Hz - 2000 Hz

Sensitivity (1W @ 1M):	98 dB SPL

Nominal Impedance:	8 ohms

Dispersion:	Omni-Directional

Components:
Low Frequency Driver	15" Cone
Magnet Material	Ferrite
Cone Material	Weather-Treated paper

Crossover Type:	Processor Specific

Crossover Frequency:	200 Hz

Enclosure Type:	Rectangle

Enclosure Material:	13-ply Baltic Birch

Enclosure Construction:	Dado and Rabbet Joinery

Enclosure Finish:	Textured Black

Grille:	Powder-Coated, Perforated Steel

Connectors:	5-Way Binder

Product Dimensions:
(inches)	H - 28.75" W - 18.50" D - 18.25"
(millimeters)	H - 730.25 W - 469.90 D - 463.55

Product Weight:	53.0 Lbs / 23.9 Kgs

Shipping Weight:	59.0 Lbs / 26.6 Kgs

Available Finish Configurations [±]

	AC-15S-3F
	With Three 2 x 2 Fly Points

	AC-15S-HP
	With handles and pole mount

	AC-15S-O
	No Handle or Pole Mount

Compatible Accessories
78-023 Mount Metal External Adaptor for 1.38" (35mm) Poles
