Available Finish Colors
Black

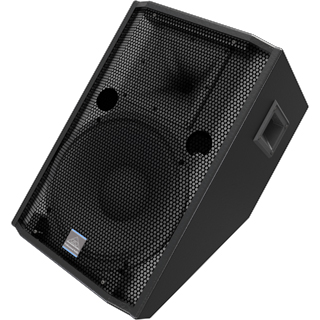

ACX-2M™

Description[±]

The ACX Series loudspeakers are a budget friendly sound reinforcement solution for the 200 - 400 seat House of Worship, smaller meeting / presentation facilities, and similar spaces. Manufactured in the USA, the ACX Series loudspeakers utilize MDF (medium-density fiberboard) enclosures and provide component concealing grilles for visual aesthetics and protection. Color options include black and white for all models.

The ACX-2M enclosure operates at 150 watts RMS @ 8 Ohms, which enables the use of lower cost transducers, thus making this loudspeaker an exceptional value for its intended application. This model incorporates two speakOn™ input connectors.

This model features a single 12” low frequency cone and a 1” compression driver for the high frequency. The rotatable 90° x 40° horn makes this model versatile for most applications. The ACX-2M is available with handles.

Specifications[±]

Power Handling :
(RMS):	150 Watts
(Program):	300 Watts
(Peak to Peak):	600 Watts

Frequency Response:	50 Hz - 18 kHz

Sensitivity (1W @ 1M):	99 dB SPL

Nominal Impedance:	8 ohms

Dispersion:	Horizontal 90°
	Vertical 40°

Components:
Low Frequency Driver	12" Cone
Magnet Material	Ceramic


Components:
High Frequency Driver	1" Compression Driver
High Frequency Horn	90° x 40°

Crossover Type:	Passive

Crossover Frequency:	2.5 kHz

Enclosure Type:	Multi-angle

Enclosure Material:	MDF

Enclosure Construction:	Dado and Rabbet Joinery

Enclosure Finish:	2-part Epoxy Spatter Paint

Grille:	Powder-Coated, Perforated Steel

Connectors:	Two NL4 Speakon®

Product Dimensions:
(inches)	H - 21.06" W - 13.13" D - 12.75"
(millimeters)	H - 534.92 W - 333.50 D - 323.85

Product Weight:	24.0 Lbs / 10.8 Kgs

Shipping Dimensions:
(inches)	H -24.75" W -16.25" D -15.63"
(millimeters)	H -628.65 W -412.75 D -397.00

Shipping Weight:	32.0 Lbs / 14.4 Kgs

Available Finish Configurations [±]

	ACX-2M-H
	With handles no pole mount

Compatible Accessories
78-023 Mount Metal External Adaptor for 1.38" (35mm) Poles
