Technical Specifications (PDF)


Available Finish Colors

Black

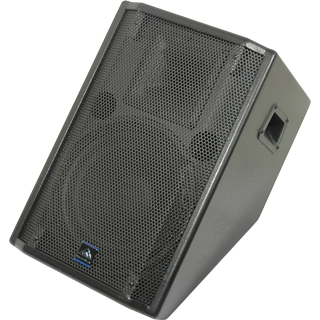

ACX-2MA™

Description[±]

The ACX Series loudspeakers are a budget friendly sound reinforcement solution for the 200 - 400 seat House of Worship, smaller meeting / presentation facilities, and similar spaces. Manufactured in the USA, the ACX Series loudspeakers utilize MDF (medium-density fiberboard) enclosures and provide component concealing grilles for visual aesthetics and protection. Color options include black and white for all models.

The ACX-2MA active model carries the benefit of power amplification that is optimized for the enclosure along with streamlined system cabling. The power amplifier's multichannel inputs include an XLR balanced microphone input, a 1/4-inch line input, and RCA inputs for use with CD players and similar equipment. Any two sources can be mixed internally. With the durable, built-in power amplifier, the ACX-2MA makes a great sounding, versatile sound reinforcement solution.

The ACX-2MA enclosure operates at 150 watts RMS @ 8 Ohms, which enables the use of lower cost transducers, thus making this loudspeaker an exceptional value for its intended application. This model incorporates two speakOn™ input connectors.

This model features a single 12” low frequency cone and a 1” compression driver for the high frequency.  The rotatable 90° x 40° horn makes this model versatile for most applications.  The ACX-2MA is available with handles.

Specifications[±]

Power Handling :

(RMS):

150 Watts

(Program):

300 Watts

(Peak to Peak):

600 Watts

Frequency Response:

50 Hz - 18 kHz

Sensitivity (1W @ 1M):

99 dB SPL

Nominal Impedance:

8 ohms

Dispersion:

Horizontal 90°

Vertical 40°

Components:



Low Frequency Driver

12" Cone

Components:



High Frequency Driver

1" Compression Driver

Crossover Frequency:

2.5 kHz

Enclosure Type:

Multi-angle

Enclosure Material:

MDF

Enclosure Construction:

Dado and Rabbet Joinery

Enclosure Finish:

2-part Epoxy Spatter Paint

Grille:

Powder-Coated, Perforated Steel

Connectors:

XLR In and Out

Product Dimensions:

(inches)

H - 21.06" W - 13.13" D - 12.75"

(millimeters)

H - 534.92 W - 333.50 D - 323.85

Product Weight:

30.0 Lbs / 13.5 Kgs

Available Finish Configurations [±]

ACX-2MA-H

With handles no pole mount
