Available Finish Colors
Black

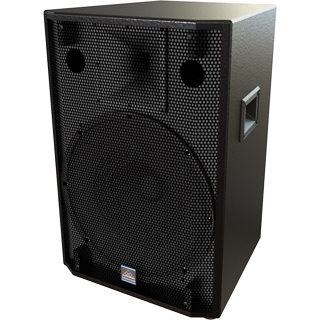

ACX-5™

Description[±]

The ACX Series loudspeakers are a budget friendly sound reinforcement solution for the 200 - 400 seat House of Worship, smaller meeting / presentation facilities, and similar spaces. Manufactured in the USA, the ACX Series loudspeakers utilize MDF (medium-density fiberboard) enclosures and provide component concealing grilles for visual aesthetics and protection. Color options include black or white for all models.

The ACX-5 enclosure operates at 150 watts RMS at 8 Ohms, which enables the use of lower cost transducers, thus making this loudspeaker an exceptional value for its intended application. This model incorporates two speakOn™ input connectors.

This model features a single 15" low frequency cone and a 1" compression driver for the high frequency. The rotatable 90° x 40° horn makes this model versatile for most applications. The ACX-5 is available with handles and a pole mount as well as three 2 x 2 flypoints.

A comprehensive range of accessories, including eyebolts, wall mount brackets, crank style speaker stands, adjustable speaker stands, dual speaker mount poles, and both crank style and adjustable speaker poles are available.

Specifications[±]

Power Handling :
(RMS):	150 Watts
(Program):	300 Watts
(Peak to Peak):	600 Watts

Frequency Response:	40 Hz - 18 kHz

Sensitivity (1W @ 1M):	99 dB SPL

Nominal Impedance:	8 ohms

Dispersion:	Horizontal 90°
	Vertical 40°

Components:
Low Frequency Driver	15" Cone
Magnet Material	Ceramic
Cone Material	Weather-Treated paper


Components:
High Frequency Driver	1" Compression Driver
High Frequency Horn	90° x 40°

Crossover Type:	Passive

Crossover Frequency:	2.8 kHz

Enclosure Type:	Trapezoidal 8.5°

Enclosure Material:	MDF

Enclosure Construction:	Dado and Rabbet Joinery

Enclosure Finish:	2-part Epoxy Spatter Paint

Grille:	Powder-Coated, Perforated Steel

Connectors:	Two NL4 Speakon®

Product Dimensions:
(inches)	H - 24.50" W - 17.00" D - 15.75"
(millimeters)	H - 622.30 W - 431.80 D - 400.05

Product Weight:	47.5 Lbs / 21.4 Kgs

Available Finish Configurations [±]

	ACX-5-3F
	With Three 2 x 2 Fly Points

	ACX-5-HP
	With handles and pole mount

Compatible Accessories
62-033 Fly Hardware Forged Machine Shoulder Eye Bolt .38" x 1.25"	75-401P Bracket Wall Mount 60 # Capacity Black Sold as Pair	75-410P Bracket Wall Mount 50 # Capacity Black Sold as Pair	78-001 Speaker Stand Crank Style 110 # Capacity Black	78-004 Speaker Stand Crank Style 80 # Capacity Black with Carry Bag
78-023 Mount Metal External Adaptor for 1.38" (35mm) Poles
