Available Finish Colors
Black

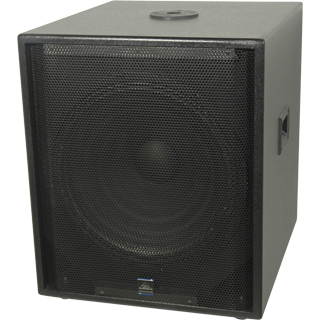

ACX-8S™

Description[±]

The ACX Series loudspeakers are a budget friendly sound reinforcement solution for the 200 - 400 seat House of Worship, smaller meeting / presentation facilities, and similar spaces. Manufactured in the USA, the ACX Series loudspeakers utilize MDF (medium-density fiberboard) enclosures and provide component concealing grilles for visual aesthetics and protection. Color options include black and white for all models.

The ACX-8 enclosure operates at 450 watts RMS @ 8 Ohms, which enables the use of a lower cost transducer, thus making this loudspeaker an exceptional value for its intended application. This model incorporates two speakOn™ input connectors.

This model features a single 18” low frequency cone. The ACX-8 is available with handles and a pole mount.

A comprehensive range of accessories, including dual speaker mount poles, and both crank style and adjustable speaker poles are available.

Specifications[±]

Power Handling :
(RMS):	450 Watts
(Program):	900 Watts
(Peak to Peak):	1800 Watts

Frequency Response:	35 Hz - 2000 Hz

Sensitivity (1W @ 1M):	99 dB SPL

Nominal Impedance:	8 ohms

Components:
Low Frequency Driver	18" Cone

Enclosure Type:	Rectangle

Enclosure Material:	MDF

Enclosure Construction:	Dado and Rabbet Joinery

Enclosure Finish:	2-part Epoxy Spatter Paint

Grille:	Powder-Coated, Perforated Steel

Connectors:	Two NL4 Speakon®

Product Dimensions:
(inches)	H - 24.50" W - 20.50" D - 23.75"
(millimeters)	H - 622.30 W - 520.70 D - 603.25

Product Weight:	74.0 Lbs / 33.3 Kgs

Shipping Dimensions:
(inches)	H -26.75" W -22.25" D -25.38"
(millimeters)	H -679.45 W -565.15 D -644.65

Shipping Weight:	80.5 Lbs / 36.2 Kgs

Available Finish Configurations [±]

	ACX-8S-HP
	With handles and pole mount

Compatible Accessories
78-023 Mount Metal External Adaptor for 1.38" (35mm) Poles
