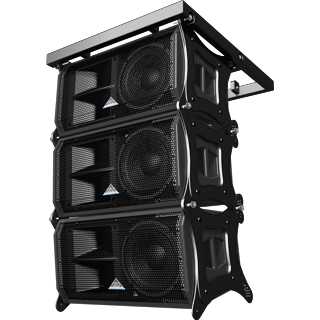

GA-1021Z™

Description[±]

The GA-1021Z is the latest addition to the Grund Audio Line Array series featuring updated and sleek-looking, low-profile hardware for a more aesthetically pleasing array. This upgrade came from listening to the needs of our integrators looking for a more affordable, streamlined, and high-performing true line array product for house of worship and portable AV applications. The ever-growing popularity of live, high-energy music in worship services, however, demands a more performance-producing sound system. The Grund Audio GA-1021Z is the perfect solution to meet those demands.

A new, high performing 10" neo driver and two 1" high-frequency neo drivers round out the driving force of the GA-1021Z. The 10" is a high-powered 300 watt woofer supported by 75 watts on each of the 1" HF drivers totaling 150 watts RMS on the high frequency side. This combination assures high-powered vocal articulation and clarity for any installation or portable event. This line array is designed to hang from three to twelve boxes providing an extremely versatile and cost-effective solution.

Many finish choices are available including black or white paint, and a natural finish which may be painted or stained to blend aesthetically into any environment. The GA-1021Z comes equipped with component-concealing mesh behind the grille to disguise the components.

Application[±]

The GALA™ GA-1021Z system is the perfect sound solution for any concert sound or A/V rental company that needs a very high quality, affordable rig to produce shows in small to large venues. The re-designed hardware makes rigging a line array system easier than ever. This system is equally capable for permanent installations in auditoriums, houses of worship, schools and night clubs.

Specifications[±]

Power Handling :

(RMS):

300 Watts

(Program):

600 Watts

(Peak to Peak):

1200 Watts

Frequency Response:

52 Hz - 18 kHz

Sensitivity (1W @ 1M):

99 dB SPL

Power Configuration:

Bi-Amp

Nominal Impedance:

16 ohms

Dispersion:

Horizontal 100°

Vertical Varies

Components:



Low Frequency Driver

10" Cone

Magnet Material

Neodymium

Cone Material

Weather-Treated paper

Components:



High Frequency Driver

2 × 1" Compression Driver

Driver Diaphragm Material

Neodymium

Crossover Type:

Processor Specific

Enclosure Type:

Trapezoidal 5°

Enclosure Material:

13-ply Baltic Birch

Enclosure Construction:

Dado and Rabbet Joinery

Enclosure Finish:

2-part Epoxy Spatter Paint

Grille:

Powder-Coated, Perforated Steel

Connectors:

Two NL4 Speakon®

Product Dimensions:

(inches)

H - 12.44" W - 22.75" D - 14.75"

(millimeters)

H - 315.98 W - 577.85 D - 374.65

Product Weight:

55.0 Lbs / 24.8 Kgs

Shipping Dimensions:

(inches)

H -26.88" W -18.25" D -18.50"

(millimeters)

H -682.63 W -463.55 D -469.90

Shipping Weight:

56.5 Lbs / 25.4 Kgs

Available Finish Configurations [±]

GA-1021Z-H

With handles no pole mount
