Available Finish Colors
Black

White

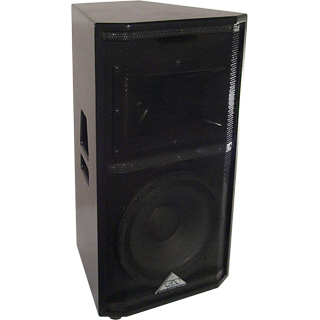

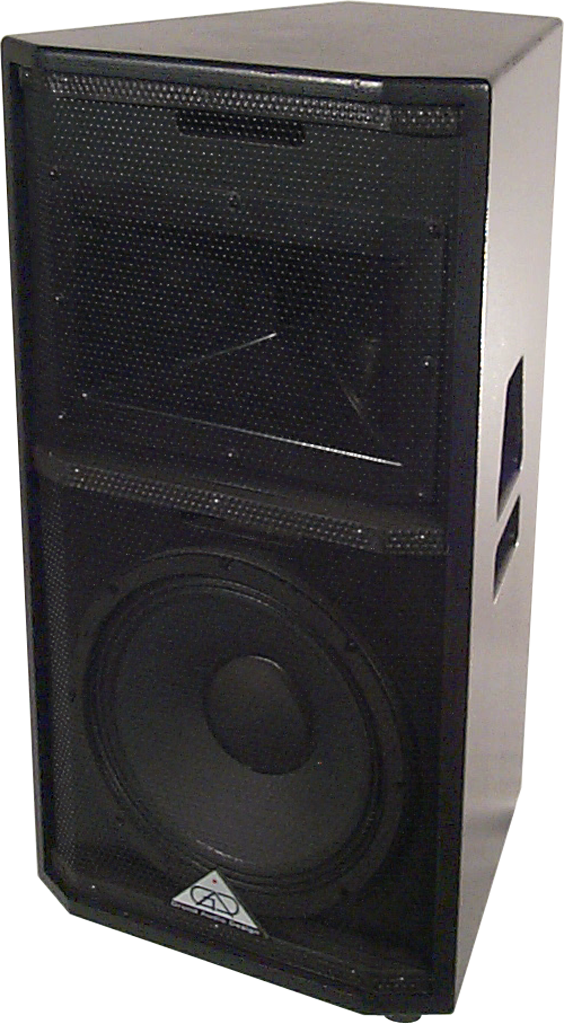

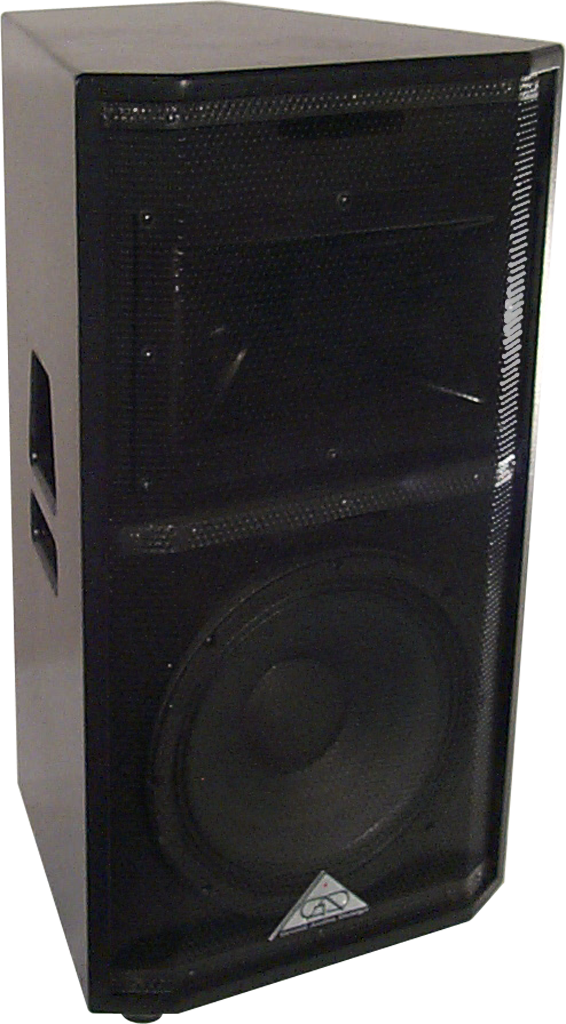

GT-1220A™

Description[±]

The GAD GT-1220A™ is a two-way, bass reflex loudspeaker system featuring flat frequency response, low distortion and wide dynamic range. Designed for permanent and semi-permanent applications.

The GT-1220A™ is available with optional 2x2, 3/8"-16 threaded mounting points.

Application[±]

The GT-1220A™ is designed for near field / far field applications where a smooth, dynamic range is needed. The GT-1220A™ is an ideal choice for either analog or digital reproductions where clean, clear response is a must. The GT-1220A™ boasts a wide-range dispersion for portable A/V events or even for side fill or delay monitoring applications.

Specifications[±]

Power Handling :
(RMS):	400 Watts
(Program):	800 Watts
(Peak to Peak):	1600 Watts

Frequency Response:	50 Hz - 16 kHz

Sensitivity (1W @ 1M):	101 dB SPL

Nominal Impedance:	8 ohms

Dispersion:	Horizontal 90°
	Vertical 40°

Components:
Low Frequency Driver	12" Cone
Cone Material	Weather-Treated paper


Components:
High Frequency Driver	2" Compression Driver

Crossover Frequency:	1.5 kHz

Enclosure Type:	Trapezoidal 15°

Grille:	Powder-Coated, Perforated Steel

Connectors:	Two NL4 Speakon® & Biamp Switch

Product Dimensions:
(inches)	H - 28.75" W - 16.00" D - 15.75"
(millimeters)	H - 730.25 W - 406.40 D - 400.05

Product Weight:	70.0 Lbs / 31.5 Kgs

Available Finish Configurations [±]

	GT-1220A-6F
	With Six 2 x 2 Fly Points

	GT-1220A-HP
	With handles and pole mount

	GT-1220A-O
	No Handle or Pole Mount

Compatible Accessories
78-023 Mount Metal External Adaptor for 1.38" (35mm) Poles	BAMP Bi-amp Option
