Available Finish Colors
Black

Unfinished

White

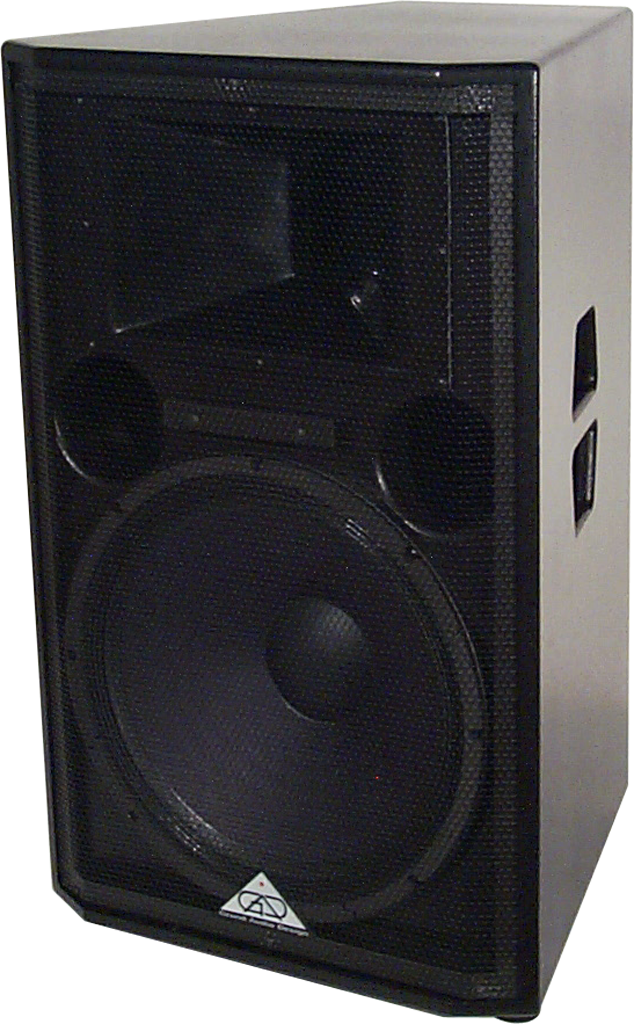

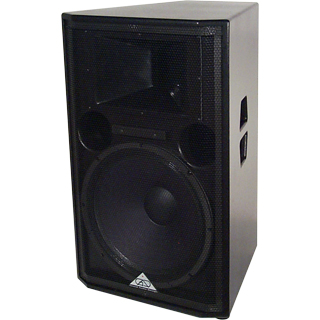

GT-1510™

Description[±]

The GAD GT-1510™ is a two-way, bass reflex loudspeaker system featuring flat frequency response, low distortion and wide dynamic range. Designed for permanent and semi-permanent applications.

The GT-1510™ is available with optional 2x2, 3/8"-16 threaded mounting points.

Application[±]

The GT-1510™ is designed for medium field applications where a smooth, dynamic range is needed. The GT-1510™ is an ideal choice for either analog or digital reproductions where clean, clear response is a must. The GT-1510™ boasts wide-range dispersion for portable A/V events or even for side-fill or delay monitoring applications.

Specifications[±]

Power Handling :
(RMS):	400 Watts
(Program):	800 Watts
(Peak to Peak):	1600 Watts

Frequency Response:	40 Hz - 16 kHz

Sensitivity (1W @ 1M):	98 dB SPL

Nominal Impedance:	8 ohms

Dispersion:	Horizontal 120°
	Vertical 40°/50°/90°

Components:
Low Frequency Driver	15" Cone
Cone Material	Weather-Treated paper


Components:
High Frequency Driver	1" Compression Driver
High Frequency Horn	Asymmetrical

Crossover Frequency:	1.5 kHz

Enclosure Type:	Trapezoidal 15°

Grille:	Powder-Coated, Perforated Steel

Connectors:	Two NL4 Speakon®

Product Dimensions:
(inches)	H - 28.75" W - 18.50" D - 18.50"
(millimeters)	H - 730.25 W - 469.90 D - 469.90

Product Weight:	75.0 Lbs / 33.8 Kgs

Available Finish Configurations [±]

	GT-1510-6F
	With Six 2 x 2 Fly Points

	GT-1510-HP
	With handles and pole mount

	GT-1510-O
	No Handle or Pole Mount

Compatible Accessories
62-028 Fastener Stud Fitting Single Point	62-029 Fastener Stud Fitting Double Point	62-033 Fly Hardware Forged Machine Shoulder Eye Bolt .38" x 1.25"	75-401P Bracket Wall Mount 60 # Capacity Black Sold as Pair	78-001 Speaker Stand Crank Style 110 # Capacity Black
78-023 Mount Metal External Adaptor for 1.38" (35mm) Poles	BAMP Bi-amp Option
