Available Finish Colors
Black

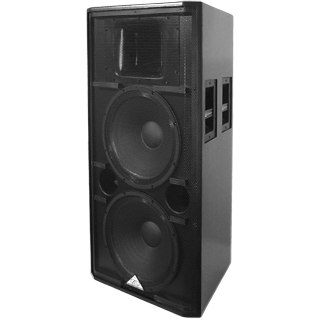

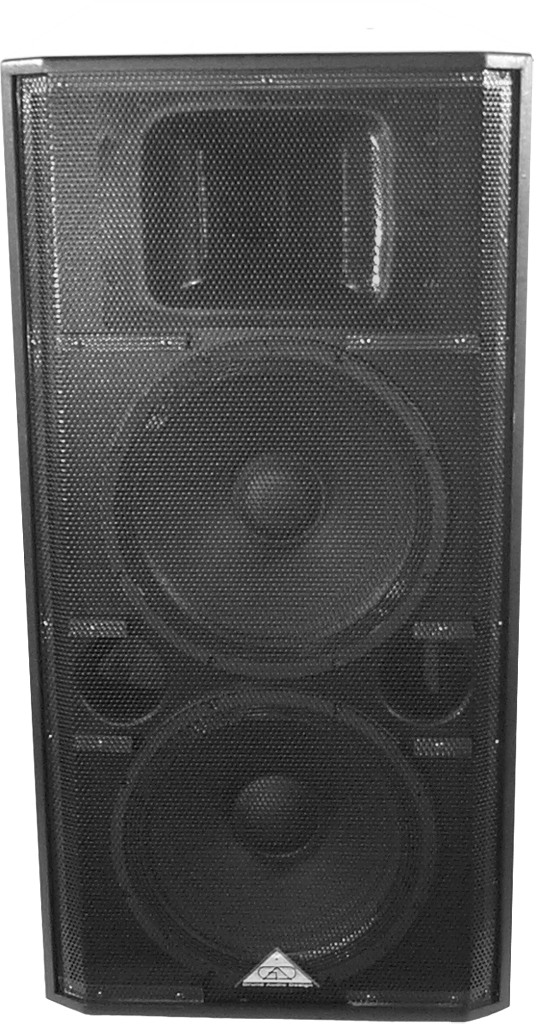

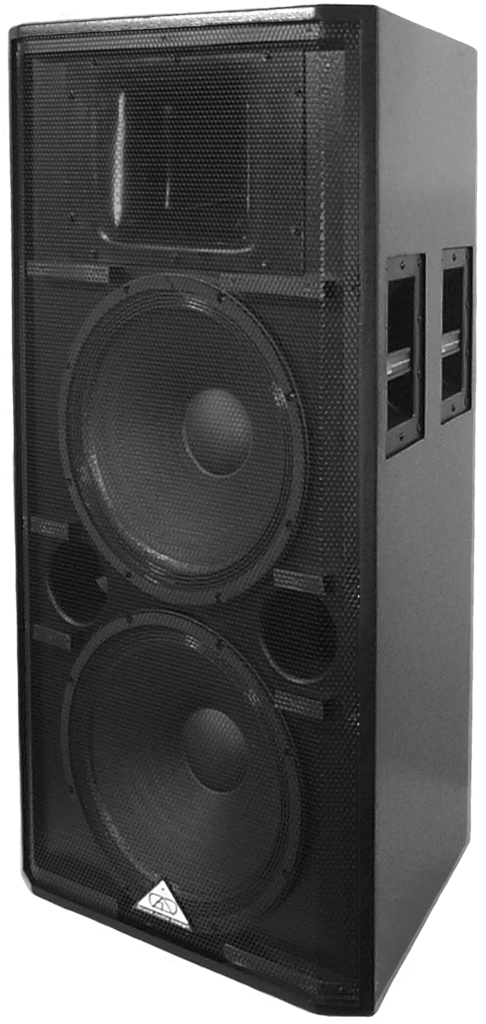

GT-3020™

Description[±]

The GAD GT-3020™ is a two-way, bass reflex loudspeaker system featuring flat frequency response, low distortion and wide dynamic range. Designed for permanent and semi-permanent applications.

The GT-3020™ is available with optional 2x2, 3/8"-16 threaded mounting points.

Application[±]

The GT-3020™ is designed for medium field applications where a smooth, dynamic range is needed. The GT-3020™ is an ideal choice for either analog or digital reproductions where clean, clear response is a must. The GT-3020™ boasts wide-range dispersion for portable A/V events or even for side-fill or delay monitoring applications.

Specifications[±]

Power Handling :
(RMS):	900 Watts
(Program):	1800 Watts
(Peak to Peak):	3600 Watts

Frequency Response:	40 Hz - 16 kHz

Sensitivity (1W @ 1M):	101 dB SPL

Nominal Impedance:	4 ohms

Dispersion:	Horizontal 90°
	Vertical 40°

Components:
Low Frequency Driver	2 × 15" Cone
Cone Material	Weather-Treated paper


Components:
High Frequency Driver	2" Compression Driver

Crossover Frequency:	1.5 kHz

Enclosure Type:	Trapezoidal 15°

Grille:	Powder-Coated, Perforated Steel

Connectors:	Two NL4 Speakon® & Biamp Switch

Product Dimensions:
(inches)	H - 44.00" W - 19.00" D - 22.25"
(millimeters)	H - 1117.60 W - 482.60 D - 565.15

Product Weight:	169.0 Lbs / 76.1 Kgs

Shipping Dimensions:
(inches)	H -48.00" W -25.50" D -21.75"
(millimeters)	H -1219.20 W -647.70 D -552.45

Shipping Weight:	117.5 Lbs / 52.9 Kgs

Available Finish Configurations [±]

	GT-3020-6T
	Six Fly Tracks No Handles Or Pole Mount

	GT-3020-H
	With handles no pole mount

Compatible Accessories
78-023 Mount Metal External Adaptor for 1.38" (35mm) Poles	BAMP Bi-amp Option
