Available Finish Colors
Black

Unfinished

White

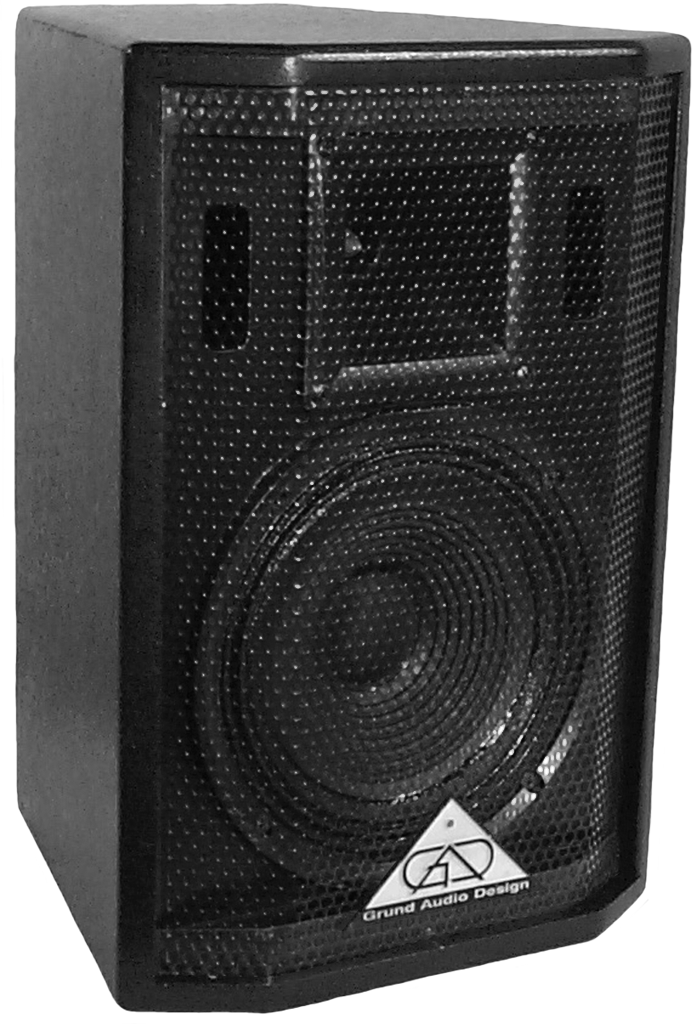

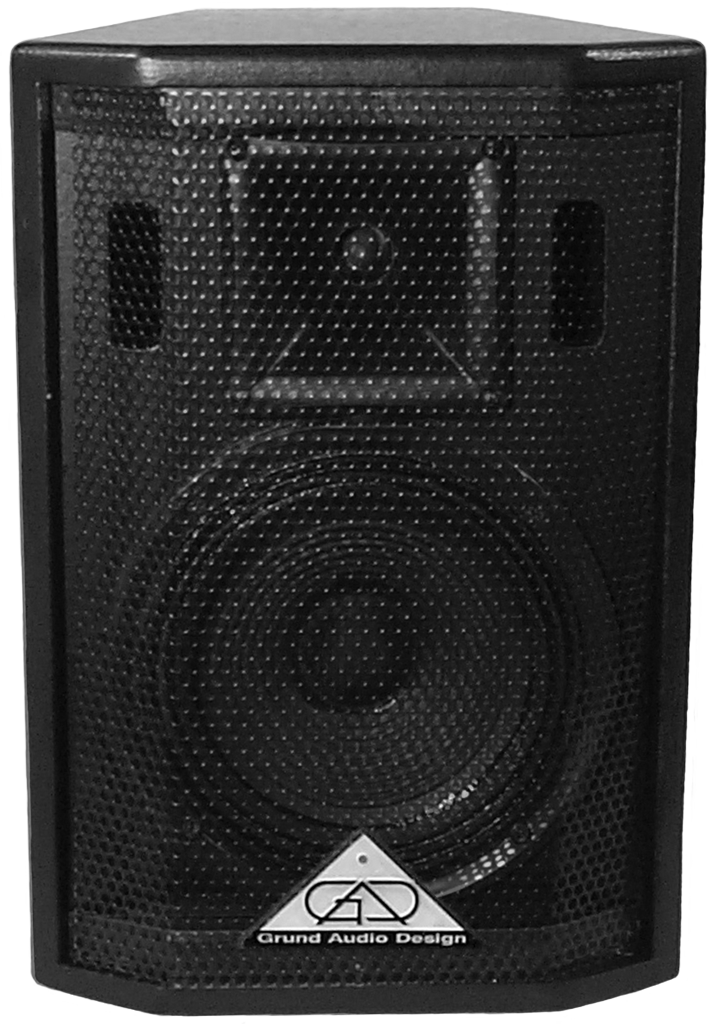

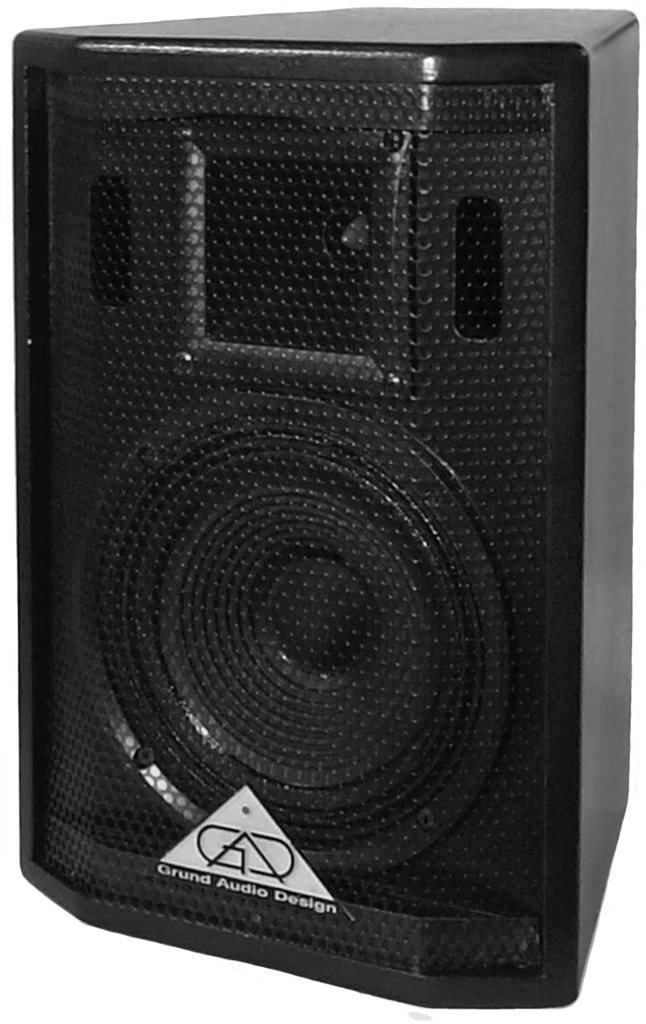

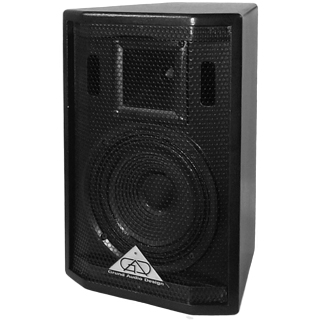

GT-871™

Description[±]

The GAD GT-871™ is a two-way bass reflex loudspeaker system featuring flat frequency response, low distortion, and wide dynamic range. Designed for permanent and semi-permanent applications.

The GT-871™ is available with several installation choices including 3/8"-16 threaded mounting points, a U-Bracket or a swivel Multimount.

Application[±]

The GT-871™ is designed for near-field applications where a smooth, dynamic range is needed. The GT-871™ is an ideal choice for either analog or digital reproductions where a clear, clean response is a must. The GT-871™ boasts wide-range dispersion for portable A/V events or even for side-fill or delay monitoring applications.

Specifications[±]

Power Handling :
(RMS):	200 Watts
(Program):	400 Watts
(Peak to Peak):	800 Watts

Frequency Response:	80 Hz - 17 kHz

Sensitivity (1W @ 1M):	98 dB SPL

Nominal Impedance:	8 ohms

Dispersion:	Horizontal 70°
	Vertical 70°

Components:
Low Frequency Driver	8" Cone
Magnet Material	Ferrite
Cone Material	Weather-Treated paper


Components:
High Frequency Driver	1" Compression Driver
High Frequency Horn	70° x 70°

Crossover Frequency:	2.8 kHz

Enclosure Type:	Trapezoidal 15°

Grille:	Powder-Coated, Perforated Steel

Connectors:	5-Way Binder

Product Dimensions:
(inches)	H - 15.50" W - 11.75" D - 11.88"
(millimeters)	H - 393.70 W - 298.45 D - 301.75

Product Weight:	23.0 Lbs / 10.4 Kgs

Available Finish Configurations [±]

	GT-871-O
	No Handle or Pole Mount

	GT-871-U
	With U-Bracket

	GT-871-3F
	With Three 2 x 2 Fly Points

Compatible Accessories
75-408P Bracket Wall Mount 25 # Capacity Black Sold as Pair	78-023 Mount Metal External Adaptor for 1.38" (35mm) Poles	BAMP Bi-amp Option
