Available Finish Colors
Black

White

GT-871X™

Description[±]

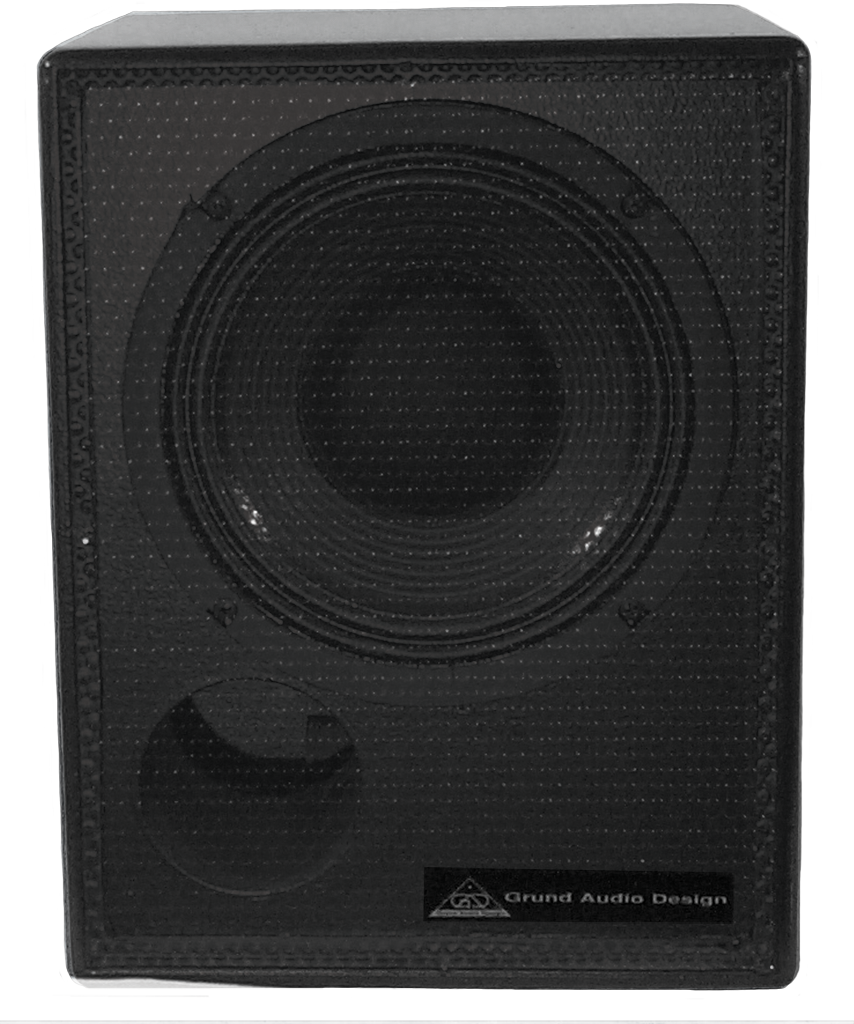

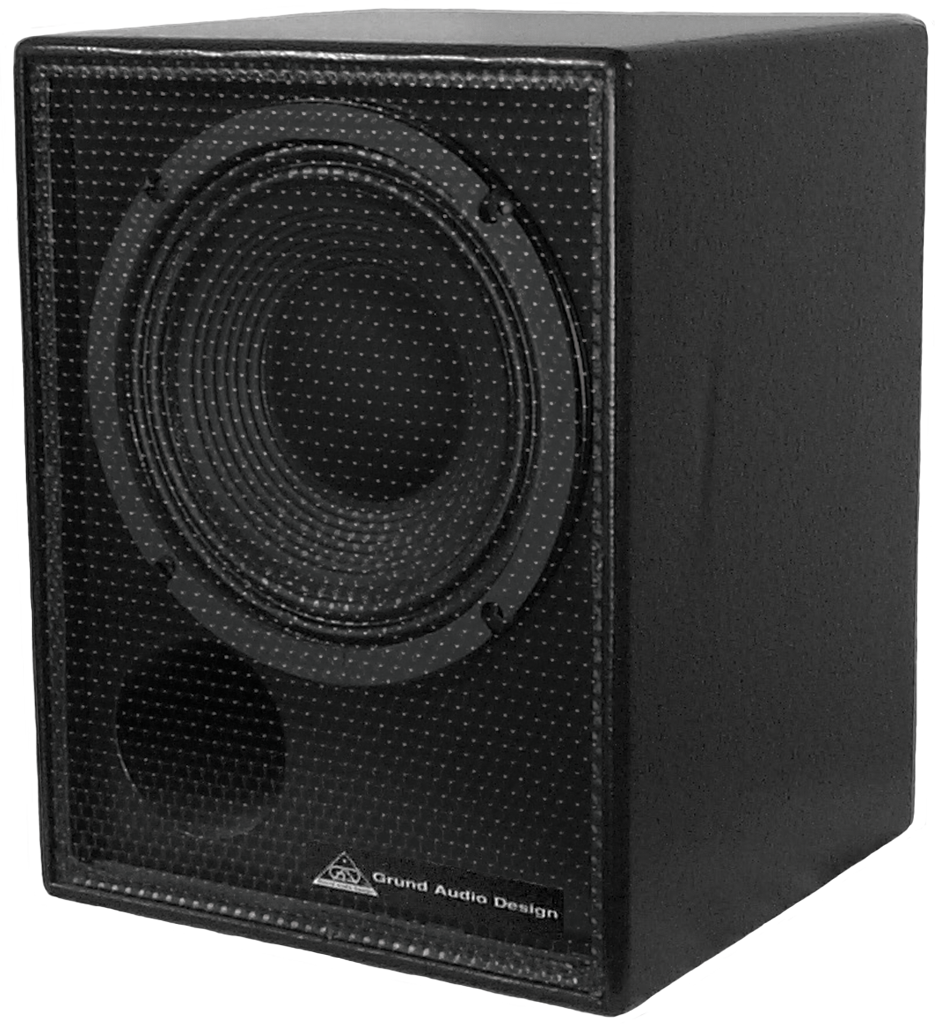

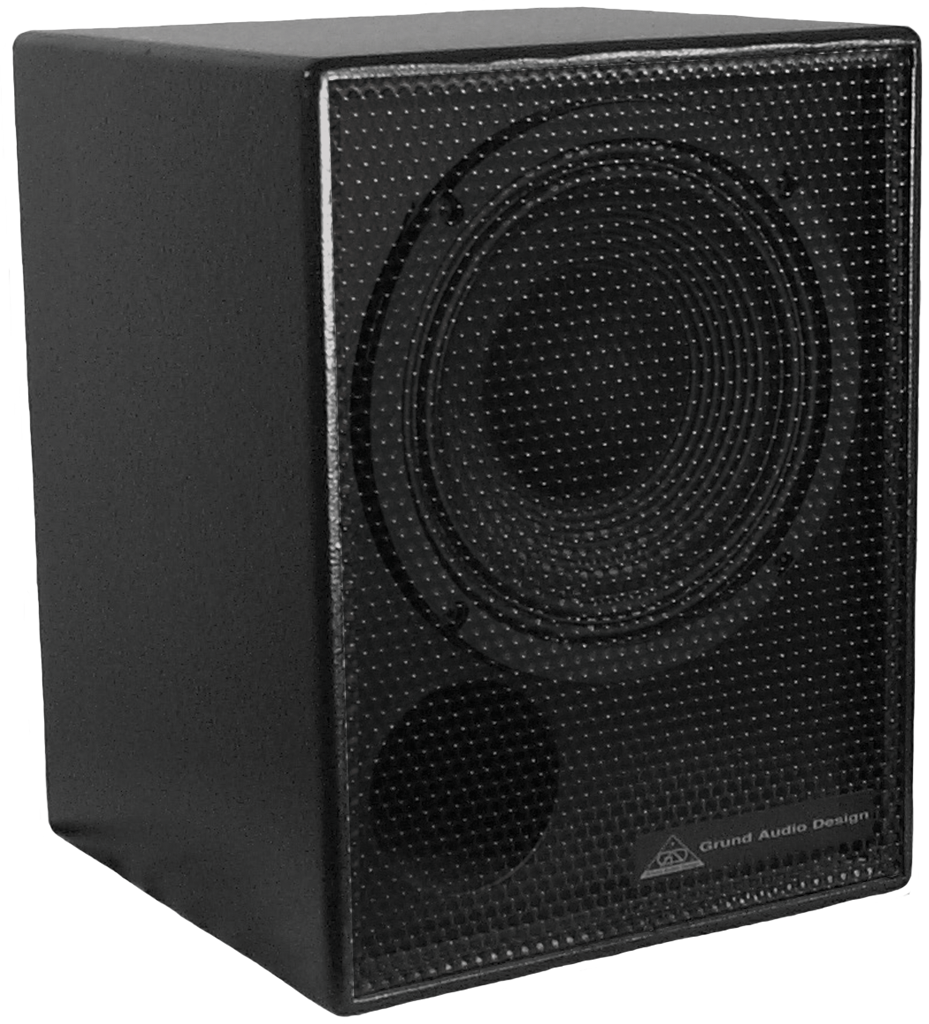

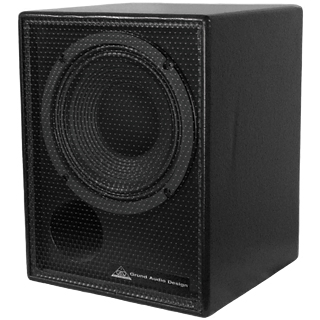

The GAD GT-871X™ is a two-way, bass reflex loudspeaker system featuring a one point source coaxial 8" cone with a 1" compression driver.

The GT-871X™ is available with optional 2x2 3/8"-16 threaded mounting points or U-Bracket.

Application[±]

The GT-871X™ has an omni-directional pattern and is suited for most near field applications including playback reinforcement and under-fill for balcony monitoring.

Specifications[±]

Power Handling :
(RMS):	100 Watts
(Program):	200 Watts
(Peak to Peak):	400 Watts

Frequency Response:	60 Hz - 17 kHz

Sensitivity (1W @ 1M):	95 dB SPL

Nominal Impedance:	8 ohms

Dispersion:	Horizontal 80°
	Vertical 80°

Components:
Low Frequency Driver	8" Cone
Cone Material	Weather-Treated paper


Components:
High Frequency Driver	1" Compression Driver

Crossover Frequency:	2.8 kHz

Enclosure Type:	Rectangle

Grille:	Powder-Coated, Perforated Steel

Connectors:	5-Way Binder

Product Dimensions:
(inches)	H - 12.75" W - 10.50" D - 10.00"
(millimeters)	H - 323.85 W - 266.70 D - 254.00

Product Weight:	20.0 Lbs / 9.0 Kgs

Available Finish Configurations [±]

	GT-871X-3F
	With Three 2 x 2 Fly Points

	GT-871X-M8
	Wall Mount Bracket - 25 # Capacity

	GT-871X-O
	No Handle or Pole Mount

	GT-871X-U
	With U-Bracket

Compatible Accessories
75-408P Bracket Wall Mount 25 # Capacity Black Sold as Pair	78-023 Mount Metal External Adaptor for 1.38" (35mm) Poles	BAMP Bi-amp Option
