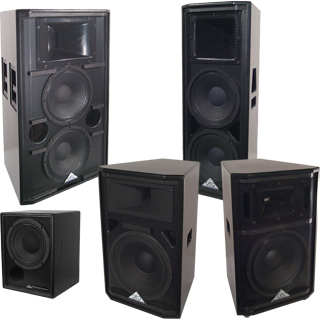

GT Series-Full Range
This line-up of the GT Series combines high SPL and high Q to meet the demands of performance in touring, rental and club applications.
The choice of horn patterns includes 90° x 40° and 60° x 40° where high Q capabilities are required. These models perform well in clusters for that wide and full array dynamic sound.
All models are available with optional fly hardware. Three standard finishes available: black, white or natural (ready to stain). Many models are available with optional biamp capability.
|
| ||||||
|---|---|---|---|---|---|---|
| Model Number |
Drivers | Frequency Response |
Sensitivity | Watt / ohm |
Dispersion H / V |
Dimensions H x W x D |
Expand Details | GT-871 |
LF: 8" Cone HF: 1" Compression Driver HF:70° x 70° |
80 Hz - 17 kHz | 98 dB SPL | 200 / 8 Ω | 70° / 70° | 15.50 × 11.75 × 11.88 |
| GT-1071 |
LF: 10" Cone HF: 1" Compression Driver HF:58-005 |
70 Hz - 17 kHz | 98 dB SPL | 250 / 8 Ω | 90° / 40° | 18.75 × 12.50 × 12.75 |
| GT-1510 |
LF: 15" Cone HF: 1" Compression Driver HF:Asymmetrical |
40 Hz - 16 kHz | 98 dB SPL | 400 / 8 Ω | 120° / 40°/50°/90° | 28.75 × 18.50 × 18.50 |
| GT-1520 |
LF: 15" Cone HF: 2" Compression Driver |
40 Hz - 18 kHz | 99 dB SPL | 400 / 8 Ω | 90° / 40° | 28.75 × 18.50 × 18.50 |
| GT-1526 |
LF: 15" Cone HF: 2" Compression Driver |
40 Hz - 18 kHz | 103 dB SPL | 400 / 8 Ω | 60° / 40° | 28.75 × 18.50 × 18.50 |
| GT-3020 |
LF: 2 × 15" Cone HF: 2" Compression Driver |
40 Hz - 16 kHz | 101 dB SPL | 900 / 4 Ω | 90° / 40° | 44.00 × 19.00 × 22.25 |
| GT-3026 |
LF: 2 × 15" Cone HF: 2" Compression Driver |
40 Hz - 16 kHz | 101 dB SPL | 900 / 4 Ω | 60° / 40° | 44.00 × 19.00 × 22.25 |
| GT-871X |
LF: 8" Cone HF: 1" Compression Driver |
60 Hz - 17 kHz | 95 dB SPL | 100 / 8 Ω | 80° / 80° | 12.75 × 10.50 × 10.00 |
| GT-1210C |
LF: 12" Cone HF: 1" Compression Driver HF:Asymmetrical |
60 Hz - 19 kHz | 103 dB SPL | 300 / 8 Ω | 120° / 40°/50°/90° | 23.75 × 15.88 × 15.75 |
| GT-1220A |
LF: 12" Cone HF: 2" Compression Driver |
50 Hz - 16 kHz | 101 dB SPL | 400 / 8 Ω | 90° / 40° | 28.75 × 16.00 × 15.75 |
| GT-1220C |
LF: 12" Cone HF: 2" Compression Driver |
60 Hz - 16 kHz | 100 dB SPL | 400 / 8 Ω | 80° / 40° | 23.75 × 15.75 × 15.75 |
| GT-1226A |
LF: 12" Cone HF: 2" Compression Driver |
50 Hz - 16 kHz | 101 dB SPL | 400 / 8 Ω | 60° / 40° | 28.75 × 16.00 × 15.75 |
| GT-2420C |
LF: 2 × 12" Cone HF: 2" Compression Driver |
40 Hz - 16 kHz | 101 dB SPL | 800 / 4 Ω | 90° / 40° | 37.75 × 19.00 × 22.25 |
| GT-2426C |
LF: 2 × 12" Cone HF: 2" Compression Driver |
40 Hz - 16 kHz | 101 dB SPL | 800 / 4 Ω | 60° / 40° | 37.75 × 19.00 × 22.25 |
2-Way
2-Way
2-Way
2-Way
2-Way
2-Way
2-Way
2-Way
2-Way
2-Way
2-Way
2-Way
2-Way
2-Way Coaxial
