Available Finish Colors
Black

Unfinished

White

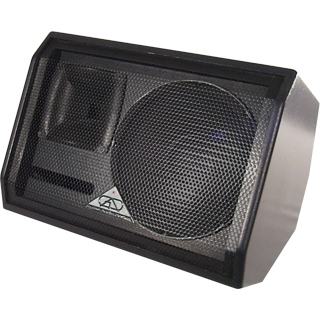

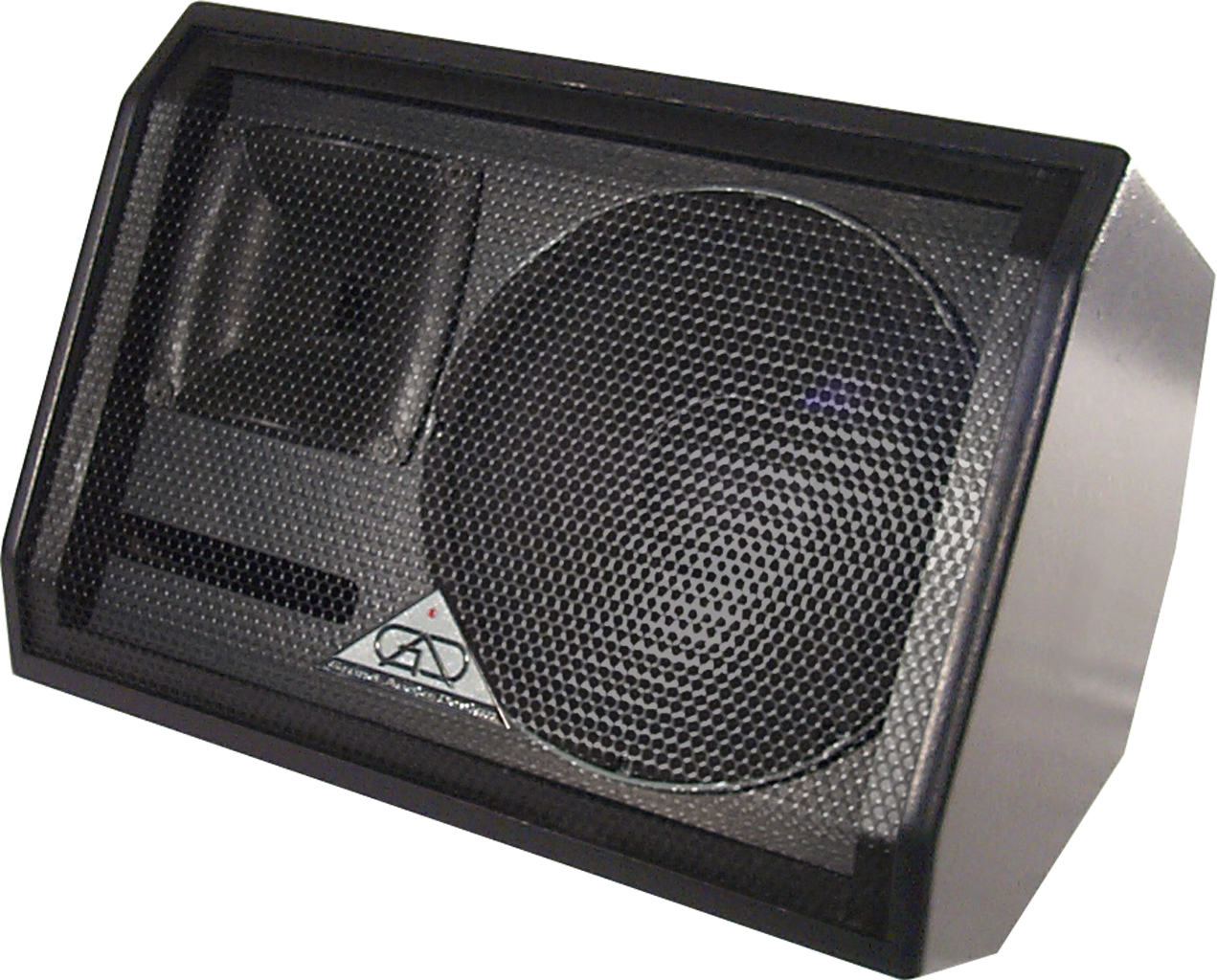

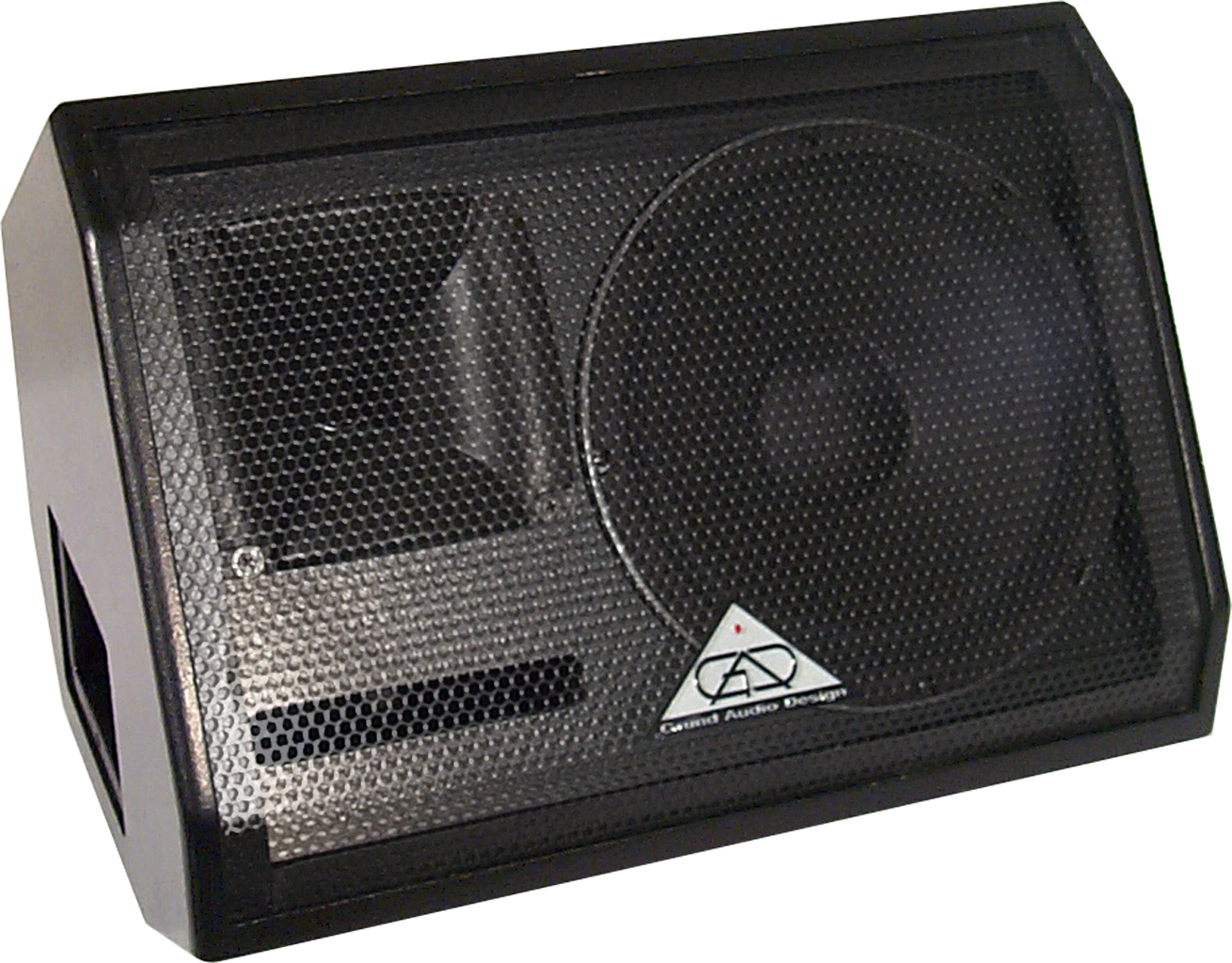

GT-1071M™

Description[±]

The GAD GT-1071M™ is a two-way, bass reflex, multi-angle loudspeaker system featuring flat frequency response, low distortion and wide dynamic range. Designed for permanent and semi-permanent applications.

Application[±]

The GT-1071M™ is designed for near field applications where a smooth, dynamic range is needed. The GT-1071M ™ is an ideal choice for either analog or digital reproductions where clean, clear response is a must. The GT-1071M ™ boasts wide-range dispersion for portable A/V events or even for side-fill or delay monitoring applications. The GT-1071M ™ is also capable of high output and power for a full stage mix of vocals.

Specifications[±]

Power Handling :
(RMS):	250 Watts
(Program):	500 Watts
(Peak to Peak):	1000 Watts

Frequency Response:	65 Hz - 16 kHz

Sensitivity (1W @ 1M):	97 dB SPL

Nominal Impedance:	8 ohms

Dispersion:	Horizontal 90°
	Vertical 40°

Components:
Low Frequency Driver	10" Cone
Magnet Material	Ferrite
Cone Material	Weather-Treated paper


Components:
High Frequency Driver	1" Compression Driver

Crossover Type:	Passive

Crossover Frequency:	2.8 kHz

Enclosure Type:	Multi-Angle

Enclosure Material:	13-ply Baltic Birch

Enclosure Construction:	Dado and Rabbet Joinery

Enclosure Finish:	Textured Black

Grille:	Powder-Coated, Perforated Steel

Connectors:	Two NL4 Speakon®

Product Dimensions:
(inches)	H - 18.63" W - 13.63" D - 13.38"
(millimeters)	H - 473.20 W - 346.20 D - 339.85

Product Weight:	28.0 Lbs / 12.6 Kgs

Shipping Dimensions:
(inches)	H -22.25" W -16.75" D -15.75"
(millimeters)	H -565.15 W -425.45 D -400.05

Shipping Weight:	34.0 Lbs / 15.3 Kgs

Available Finish Configurations [±]

	GT-1071M-H
	With handles no pole mount

	GT-1071M-HP
	With handles and pole mount

Compatible Accessories
78-001 Speaker Stand Crank Style 110 # Capacity Black	78-004 Speaker Stand Crank Style 80 # Capacity Black with Carry Bag	BAMP Bi-amp Option	RVR Reverse Image
