Available Finish Colors
Black

Unfinished

White

GT-1520M™

Description[±]

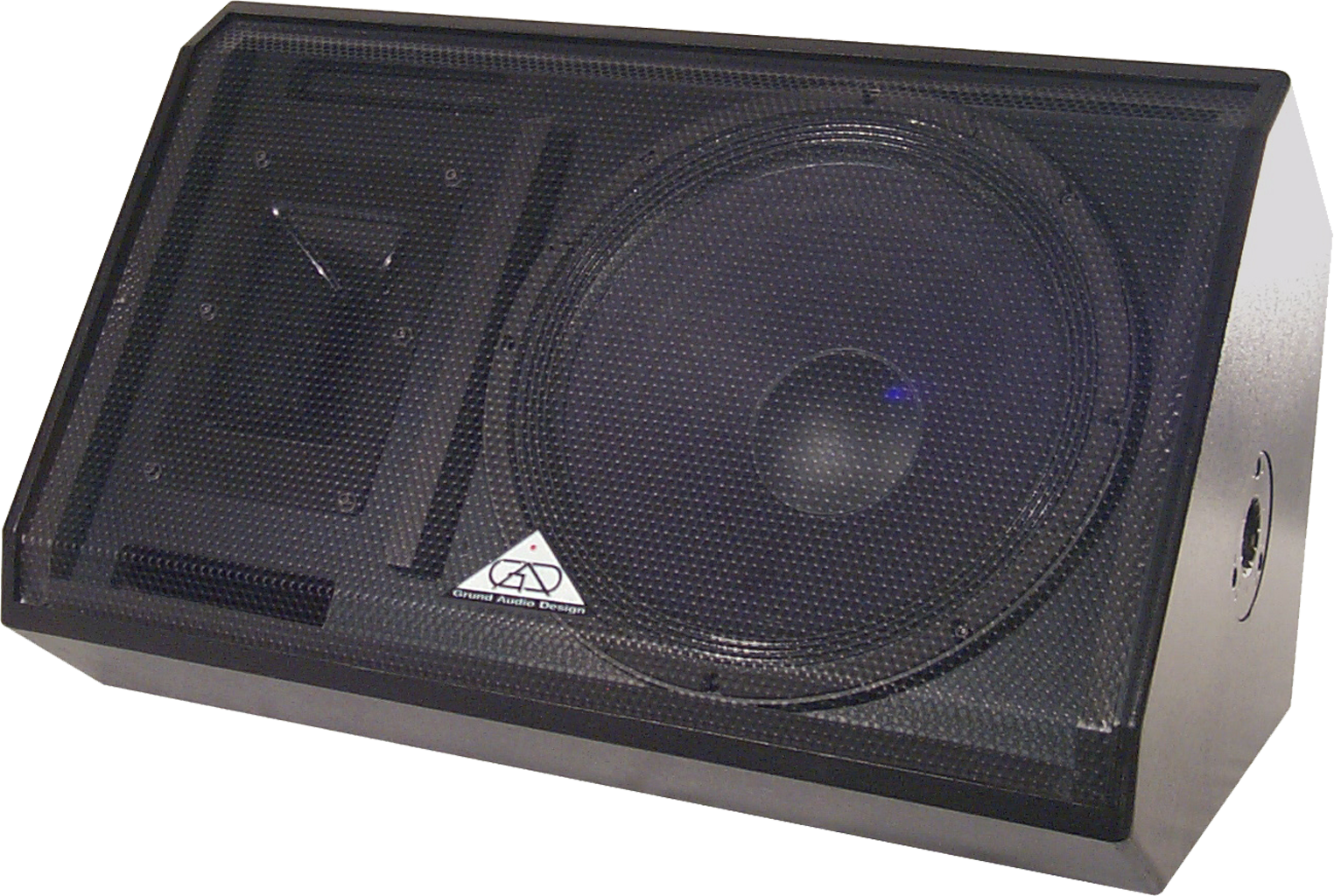

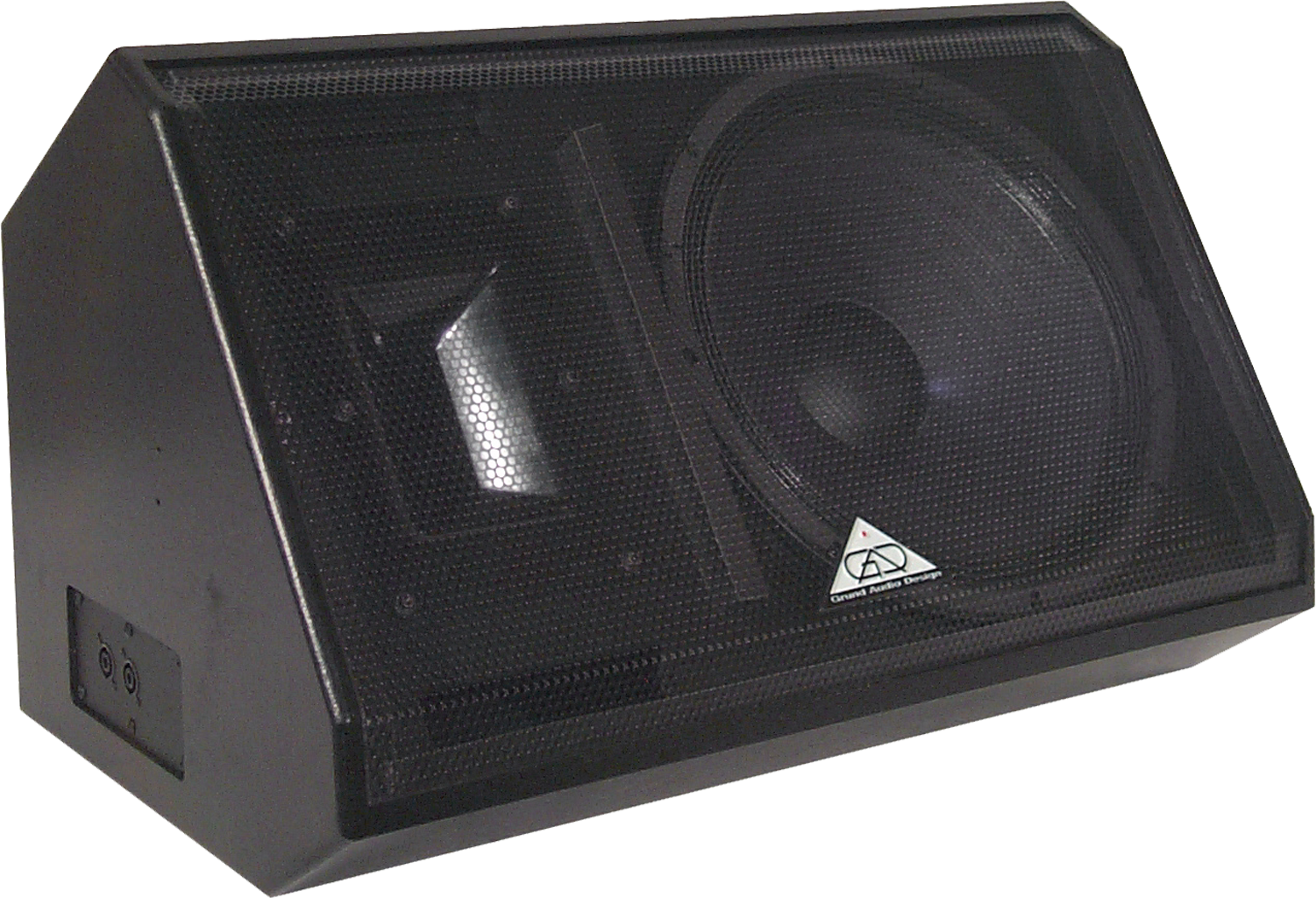

The GAD GT-1520M™ is a two-way, bass reflex, multi-angle loudspeaker system featuring flat frequency response, low distortion and wide dynamic range. Designed for permanent and semi-permanent applications.

The GT-1520M™ is available with several installation choices including 2 x 2, 3/8"-16 threaded mounting points.

Application[±]

The GT-1520M™ is designed for near field applications where a smooth, dynamic range is needed. The GT-1520M™ is an ideal choice for either analog or digital reproductions where clean, clear response is a must. The GT-1520M™ boasts wide-range dispersion for portable A/V events or even for side-fill or delay monitoring applications. The GT-1520M™ is also capable of high output and power for a full stage mix of vocals, drums, and bass guitars.

Specifications[±]

Power Handling :
(RMS):	450 Watts
(Program):	900 Watts
(Peak to Peak):	1800 Watts

Frequency Response:	50 Hz - 18 kHz

Sensitivity (1W @ 1M):	99 dB SPL

Nominal Impedance:	8 ohms

Dispersion:	Horizontal 40°
	Vertical 80°

Components:
Low Frequency Driver	15" Cone
Cone Material	Weather-Treated paper


Components:
High Frequency Driver	2" Compression Driver

Crossover Frequency:	1.5 kHz

Enclosure Type:	Multi-Angle

Grille:	Powder-Coated, Perforated Steel

Connectors:	Two NL4 Speakon® & Biamp Switch

Product Dimensions:
(inches)	H - 17.25" W - 28.75" D - 17.88"
(millimeters)	H - 438.15 W - 730.25 D - 454.15

Product Weight:	62.0 Lbs / 27.9 Kgs

Shipping Dimensions:
(inches)	H -33.25" W -25.00" D -21.50"
(millimeters)	H -844.55 W -635.00 D -546.10

Shipping Weight:	73.0 Lbs / 32.9 Kgs

Available Finish Configurations [±]

	GT-1520M-H
	With handles no pole mount

Compatible Accessories
BAMP Bi-amp Option	RVR Reverse Image
