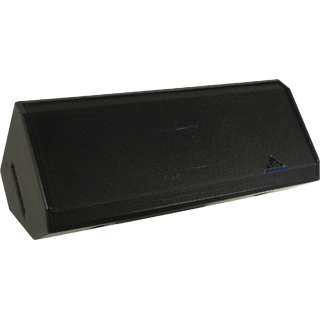

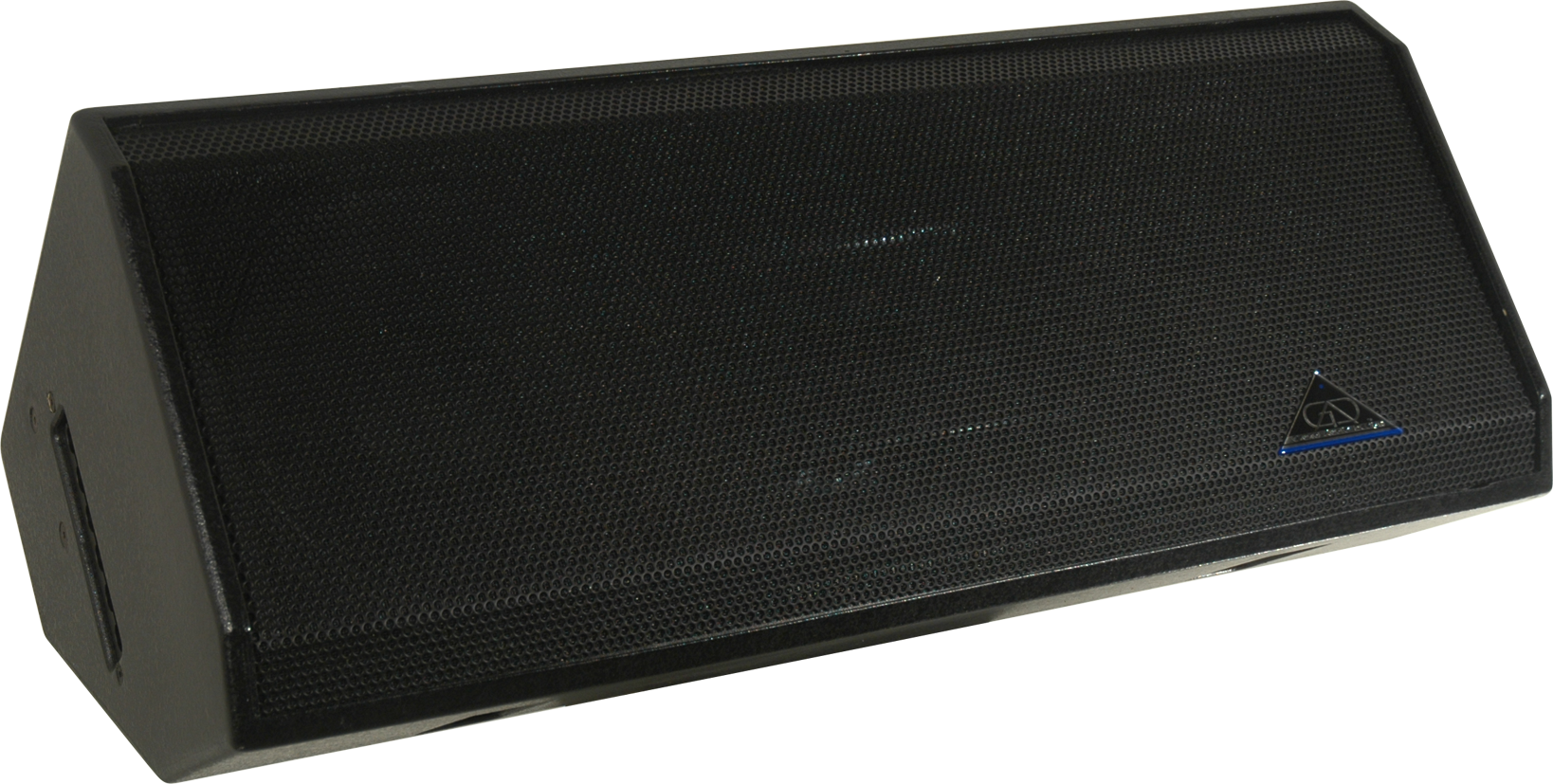

GT-SF242R™

Power Handling :

(RMS):

800 Watts

(Program):

1600 Watts

(Peak to Peak):

3200 Watts

Max Output (1W @ 1M):

132 dB SPL

Frequency Response:

40 Hz - 18 kHz

Sensitivity (1W @ 1M):

101 dB SPL

Power Configuration:

Bi-Amp

Nominal Impedance:

4 ohms

Dispersion:

Horizontal 80°

Vertical 50°

Components:

Low Frequency Driver

2 × 12" Cone

Magnet Material

Ferrite

Cone Material

Weather-Treated paper

Components:

High Frequency Driver

2" Compression Driver

Crossover Type:

Passive

Crossover Frequency:

1.5 18db kHz

Enclosure Type:

Multi-angle

Enclosure Material:

13-ply Baltic Birch

Enclosure Construction:

Dado and Rabbet Joinery

Enclosure Finish:

Textured Black

Grille:

Powder-Coated, Perforated Steel

Connectors:

Two NL4 Speakon® & Biamp Switch

Product Dimensions:

(inches)

H - 15.00" W - 36.00" D - 14.25"

(millimeters)

H - 381.00 W - 914.40 D - 361.95

GT-SF242R-2TFH
