GT-1201™

Description[±]

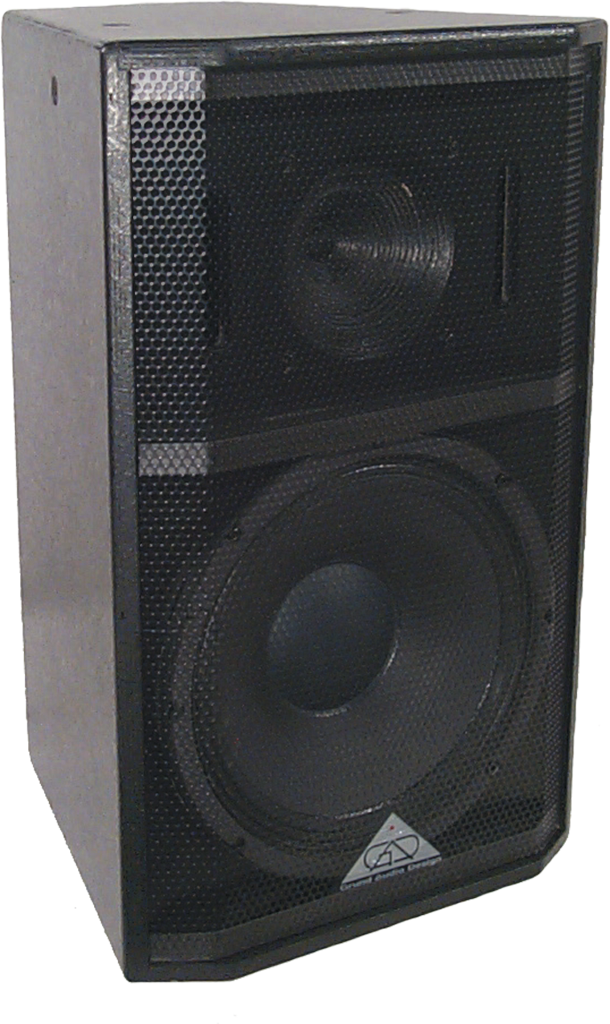

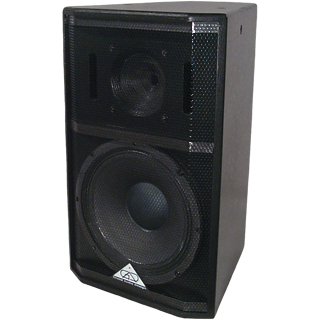

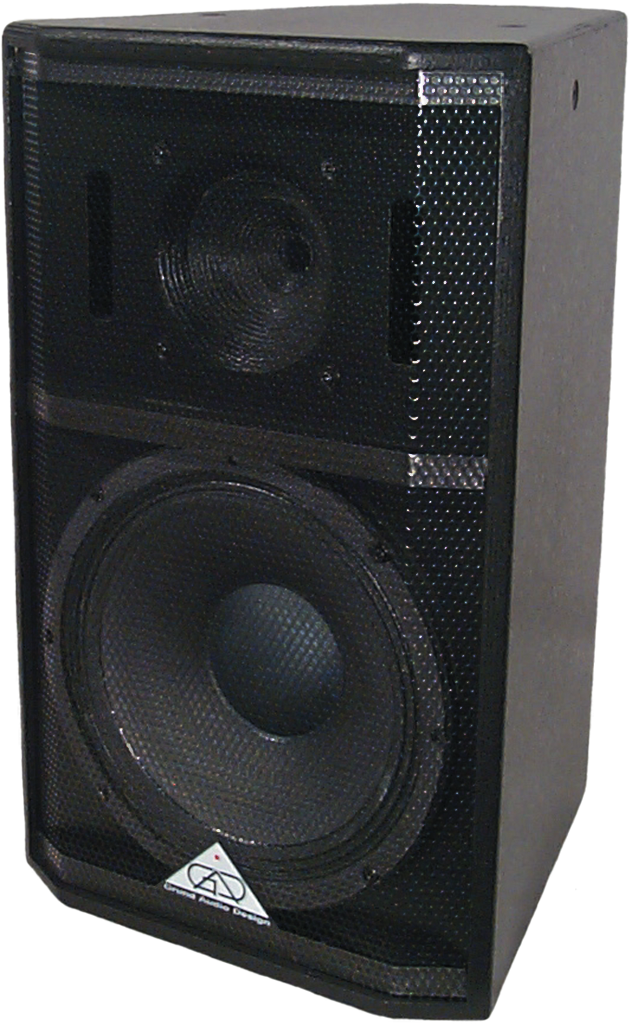

The GAD GT-1201™ is a two-way, bass reflex loudspeaker system featuring flat frequency response, low distortion and wide dynamic range. Designed for permanent and semi-permanent applications.

The GT- 1201™ is available with 3/8"-16 threaded mounting points or U-brackets which permit safe, load-rated hanging in permanent installations.

Application[±]

The GT-1201™ is designed for near-field applications where a smooth dynamic range is needed. The GT- 1201™ is an ideal choice for either analog or digital reproductions where clean, clear response is a must. The GT- 1201™ boasts a wide range dispersion for portable A/V events, churches, auditoriums, theaters and other applications where clean vocal intelligibility is paramount.

Specifications[±]

Power Handling :

(RMS):

350 Watts

(Program):

700 Watts

(Peak to Peak):

1400 Watts

Max Output (1W @ 1M):

129 dB SPL

Frequency Response:

50 Hz - 18 kHz

Sensitivity (1W @ 1M):

98 dB SPL

Nominal Impedance:

8 ohms

Dispersion:

Horizontal 90°

Vertical 90°

Components:



Low Frequency Driver

12" Cone

Magnet Material

Ferrite

Cone Material

Treated paper

Components:



High Frequency Driver

1" Compression Driver

Horn Material

13-Ply Birch

Crossover Type:

Passive

Crossover Frequency:

1.6 kHz

Enclosure Type:

Trapezoidal 15°

Enclosure Material:

13-ply Baltic Birch

Enclosure Construction:

Dado and Rabbet Joinery

Enclosure Finish:

Textured Black

Grille:

Powder-Coated, Perforated Steel

Connectors:

5-Way Binder or Two NL4 Speakon®

Product Dimensions:

(inches)

H - 23.50" W - 14.75" D - 14.75"

(millimeters)

H - 596.90 W - 374.65 D - 374.65

Product Weight:

35.0 Lbs / 15.8 Kgs

Available Finish Configurations [±]

GT-1201-3F

With Three 2 x 2 Fly Points

GT-1201-HP

With handles and pole mount

GT-1201-M10

Wall Mount Bracket - 50 # Capacity

GT-1201-O

No Handle or Pole Mount

GT-1201-U

With U-Bracket
