Available Finish Colors
Black

White

GT-1201M™

Description[±]

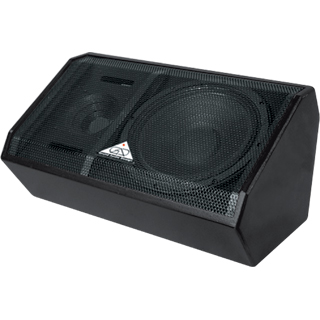

The GAD GT-1201M™ is a two-way, bass reflex, multi-angle loudspeaker system featuring flat frequency response, low distortion and wide dynamic range. Designed for permanent and semi-permanent applications.

The GT1201M™ is available with several installation choices including 2 x 2, 3/8"-16 threaded mounting points.

Application[±]

The GT-1201M™ is designed for near field applications where a smooth, dynamic range is needed. The GT-1201M™ is an ideal choice for either analog or digital reproductions where clean, clear response is a must. The GT-1201M™ boasts wide-range dispersion for portable A/V events or even for side-fill or delay monitoring applications.

Specifications[±]

Power Handling :
(RMS):	400 Watts
(Program):	800 Watts
(Peak to Peak):	1600 Watts

Max Output (1W @ 1M):	130 dB SPL

Frequency Response:	50 Hz - 18 kHz

Sensitivity (1W @ 1M):	99 dB SPL

Nominal Impedance:	8 ohms

Dispersion:	Horizontal 90°
	Vertical 90°

Components:
Low Frequency Driver	12" Cone
Magnet Material	Ferrite
Cone Material	Weather-Treated paper


Components:
High Frequency Driver	1" Compression Driver
Horn Material	13-Ply Birch

Crossover Type:	Passive

Crossover Frequency:	1.5 kHz

Enclosure Type:	Multi-Angle

Enclosure Material:	13-ply Baltic Birch

Enclosure Construction:	Dado and Rabbet Joinery

Enclosure Finish:	Textured Black

Grille:	Powder-Coated, Perforated Steel

Connectors:	Two NL4 Speakon®

Product Dimensions:
(inches)	H - 13.25" W - 23.75" D - 14.25"
(millimeters)	H - 336.55 W - 603.25 D - 361.95

Product Weight:	44.0 Lbs / 19.8 Kgs

Shipping Weight:	49.0 Lbs / 22.1 Kgs

Available Finish Configurations [±]

	GT-1201M-HP
	With handles and pole mount

Compatible Accessories
78-023 Mount Metal External Adaptor for 1.38" (35mm) Poles
