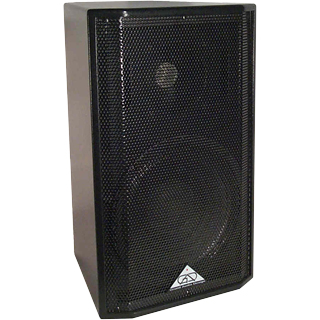

GT-1202™

Description[±]

The GAD GT-1202™ is a two-way, bass reflex loudspeaker system featuring flat frequency response, low distortion and wide dynamic range. Designed for permanent and semi-permanent applications.

The GT-1202™ is available with 3/8"-16 threaded mounting points which permit safe, load-rated suspension in permanent installations.

Application[±]

The GT-1202™ is designed for near-field applications where a smooth dynamic range is needed. The GT-1202™ is an ideal choice for either analog or digital reproductions where clean, clear response is a must. The GT-1202™ boasts a wide range dispersion for portable A/V events, churches, auditoriums, theaters and other applications where clean vocal intelligibility is paramount.

Specifications[±]

Power Handling :
(RMS):	400 Watts
(Program):	800 Watts
(Peak to Peak):	1600 Watts

Max Output (1W @ 1M):	130 dB SPL

Frequency Response:	50 Hz - 18 kHz

Sensitivity (1W @ 1M):	99 dB SPL

Nominal Impedance:	8 ohms

Dispersion:	Horizontal 90°
	Vertical 90°

Components:
Low Frequency Driver	12" Cone
Magnet Material	Ferrite
Cone Material	Weather-Treated paper


Components:
High Frequency Driver	2" Compression
High Frequency Horn	Plane Wave
Horn Material	13-Ply Birch

Crossover Type:	Passive

Crossover Frequency:	1.5 kHz

Enclosure Type:	Trapezoidal 15°

Enclosure Material:	13-ply Baltic Birch

Enclosure Construction:	Dado and Rabbet Joinery

Enclosure Finish:	Textured Black

Grille:	Powder-Coated, Perforated Steel

Connectors:	5-Way Binder or Two NL4 Speakon®

Product Dimensions:
(inches)	H - 23.50" W - 14.75" D - 14.75"
(millimeters)	H - 596.90 W - 374.65 D - 374.65

Product Weight:	52.0 Lbs / 23.4 Kgs

Shipping Weight:	57.0 Lbs / 25.7 Kgs

Available Finish Configurations [±]

	GT-1202-3F
	With Three 2 x 2 Fly Points

	GT-1202-HP
	With handles and pole mount

	GT-1202-O
	No Handle or Pole Mount

	GT-1202-U
	With U-Bracket

Compatible Accessories
78-023 Mount Metal External Adaptor for 1.38" (35mm) Poles
