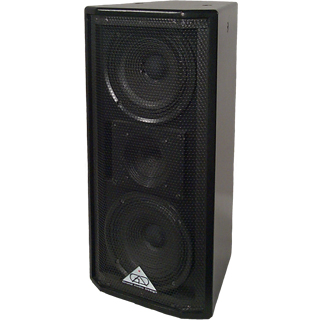

GT-1601™

Description[±]

The GAD GT-1601™ is a two-way, dual bass reflex loudspeaker system featuring flat frequency response, low distortion and wide dynamic range. Designed for permanent and semi-permanent applications.

The GT-1601™ is available with several installation choices including 3/8"-16 threaded mounting points, or a U-Bracket.

Application[±]

The GT-1601™ is designed for near-field applications where a smooth, dynamic range is needed. The GT-1601™ is an ideal choice for either analog or digital reproductions where clean, clear response is a must. The GT-1601™ boasts a wide-range dispersion for portable A/V events or even for side fill or delay monitoring applications.

Specifications[±]

Power Handling :
(RMS):	400 Watts
(Program):	800 Watts
(Peak to Peak):	1600 Watts

Max Output (1W @ 1M):	130 dB SPL

Frequency Response:	55 Hz - 19 kHz

Sensitivity (1W @ 1M):	101 dB SPL

Nominal Impedance:	4 ohms

Dispersion:	Horizontal 90°
	Vertical 90°

Components:
Low Frequency Driver	2 × 51-025
Magnet Material	Ferrite
Cone Material	Weather-Treated paper


Components:
High Frequency Driver	57-032
High Frequency Horn	58-033
Horn Material	13-Ply Birch

Crossover Type:	Passive

Crossover Frequency:	2.2 kHz

Enclosure Type:	Trapezoidal 15°

Enclosure Material:	13-ply Baltic Birch

Enclosure Construction:	Dado and Rabbet Joinery

Enclosure Finish:	Textured Black

Grille:	Powder-Coated, Perforated Steel

Connectors:	5-Way Binder or Two NL4 Speakon®

Product Dimensions:
(inches)	H - 23.75" W - 12.00" D - 11.75"
(millimeters)	H - 603.25 W - 304.80 D - 298.45

Product Weight:	40.0 Lbs / 18.0 Kgs

Available Finish Configurations [±]

	GT-1601-3F
	With Three 2 x 2 Fly Points

	GT-1601-HP
	With handles and pole mount

	GT-1601-M10
	Wall Mount Bracket - 50 # Capacity

	GT-1601-O
	No Handle or Pole Mount

	GT-1601-U
	With U-Bracket

Compatible Accessories
62-033 Fly Hardware Forged Machine Shoulder Eye Bolt .38" x 1.25"	75-401P Bracket Wall Mount 60 # Capacity Black Sold as Pair	75-410P Bracket Wall Mount 50 # Capacity Black Sold as Pair	78-001 Speaker Stand Crank Style 110 # Capacity Black	78-004 Speaker Stand Crank Style 80 # Capacity Black with Carry Bag
78-023 Mount Metal External Adaptor for 1.38" (35mm) Poles
