Available Finish Colors
Black

Unfinished

White

GT-1601M™

Description[±]

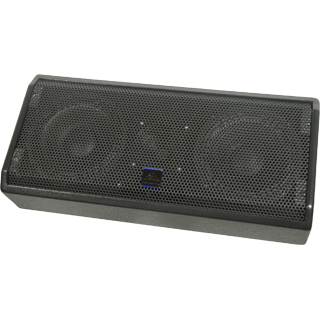

The GAD GT-1601M™ is a two-way, dual bass reflex multi-angle loudspeaker system featuring flat frequency response, low distortion and wide dynamic range. Designed for permanent and semi-permanent applications.

The GT-1601M™ is available with optional 2x2, 3/8"-16 threaded mounting points.

Application[±]

The GT-1601M™ is designed for near-field applications where a smooth, dynamic range is needed. The GT-1601M™ is an ideal choice for either analog or digital reproductions where clean, clear response is a must. The GT-1601M™ boasts a wide-range dispersion for portable A/V events or even for side-fill or delay monitoring applications.

Specifications[±]

Power Handling :
(RMS):	400 Watts
(Program):	800 Watts
(Peak to Peak):	1600 Watts

Max Output (1W @ 1M):	129 dB SPL

Frequency Response:	55 Hz - 19 kHz

Sensitivity (1W @ 1M):	101 dB SPL

Nominal Impedance:	4 ohms

Dispersion:	Horizontal 90°
	Vertical 90°

Components:
Low Frequency Driver	2 × 8" Cone
Magnet Material	Ferrite
Cone Material	Weather-Treated paper


Components:
High Frequency Driver	1" Compression Driver
High Frequency Horn	Plane Wave
Horn Material	13-Ply Birch

Crossover Type:	Passive

Crossover Frequency:	1.6 kHz

Enclosure Type:	Multi-Angle

Enclosure Material:	13-ply Baltic Birch

Enclosure Construction:	Dado and Rabbet Joinery

Enclosure Finish:	Textured Black

Grille:	Powder-Coated, Perforated Steel

Connectors:	Two NL4 Speakon®

Product Dimensions:
(inches)	H - 10.75" W - 23.50" D - 9.75"
(millimeters)	H - 273.05 W - 596.90 D - 247.65

Product Weight:	26.0 Lbs / 11.7 Kgs

Shipping Dimensions:
(inches)	H -27.00" W -15.00" D -15.00"
(millimeters)	H -685.80 W -381.00 D -381.00

Shipping Weight:	31.5 Lbs / 14.2 Kgs

Available Finish Configurations [±]

	GT-1601M-H
	With handles no pole mount

Compatible Accessories
78-023 Mount Metal External Adaptor for 1.38" (35mm) Poles
