GT-5301™

Description[±]

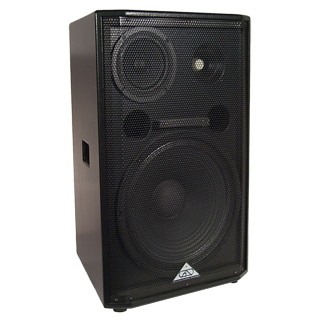

The GAD GT-5301™ is a three-way, bass reflex loudspeaker system featuring flat frequency response, low distortion and wide dynamic range. Designed for permanent and semi-permanent applications.

The GT-5301™ is available with optional 3/8"-16 threaded mounting points which permits safe, load-rated suspension in permanent installations.

Application[±]

The GT-5301™ is designed for near field / far field applications where a smooth, dynamic range is needed. The GT-5301™ is an ideal choice for either analog or digital reproductions where clean, clear response is a must. The GT-5301™ boasts a wide-range dispersion for portable A/V events or even for side fill or delay monitoring applications.

Specifications[±]

Power Handling :
(RMS):	350 Watts
(Program):	700 Watts
(Peak to Peak):	1400 Watts

Max Output (1W @ 1M):	130 dB SPL

Frequency Response:	40 Hz - 19.5 kHz

Sensitivity (1W @ 1M):	99 dB SPL

Nominal Impedance:	8 ohms

Dispersion:	Horizontal 90°
	Vertical 90°

Components:
Low Frequency Driver	15" Cone
Magnet Material	Ceramic
Cone Material	Weather-Treated paper


Components:
Medium Frequency Driver	6" Cone


Components:
High Frequency Driver	1" Compression Driver
High Frequency Horn	Plane Wave
Horn Material	13-Ply Birch

Crossover Type:	Passive

Crossover Frequency:	400 / 2.2 kHz

Enclosure Type:	Trapezoidal 15°

Enclosure Material:	13-ply Baltic Birch

Enclosure Construction:	Dado and Rabbet Joinery

Enclosure Finish:	Textured Black

Grille:	Powder-Coated, Perforated Steel

Connectors:	Two NL4 Speakon®

Product Dimensions:
(inches)	H - 28.75" W - 18.50" D - 18.50"
(millimeters)	H - 730.25 W - 469.90 D - 469.90

Product Weight:	60.0 Lbs / 27.0 Kgs

Available Finish Configurations [±]

	GT-5301-6F
	With Six 2 x 2 Fly Points

	GT-5301-HP
	With handles and pole mount

Compatible Accessories
78-023 Mount Metal External Adaptor for 1.38" (35mm) Poles
