Available Finish Colors
Black

Unfinished

White

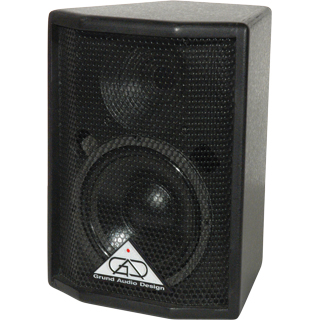

GT-601™

Description[±]

The GAD GT-601™ is a two-way bass reflex loudspeaker system featuring flat frequency response, low distortion and wide dynamic range. Designed for permanent and semi-permanent applications.

The GT-601™ is available with several installations choices including 3/8"-16 threaded mounting points, a U-bracket or a swivel Multimount.

Application[±]

The GT-601™ is designed for near-field applications where a smooth, dynamic range is needed. The GT-601™ is an ideal choice for either analog or digital reproductions where clear, clean response is a must. The GT-601™ boasts wide-range dispersion for portable A/V events or even for side-fill or delay monitoring applications.

Specifications[±]

Power Handling :
(RMS):	100 Watts
(Program):	200 Watts
(Peak to Peak):	400 Watts

Frequency Response:	65 Hz - 20 kHz

Sensitivity (1W @ 1M):	95 dB SPL

Nominal Impedance:	8 ohms

Dispersion:	Horizontal 90°
	Vertical 90°

Components:
Low Frequency Driver	6" Cone
Cone Material	Weather-Treated paper


Components:
High Frequency Driver	1" Compression Driver

Crossover Frequency:	4 kHz

Enclosure Type:	Trapezoidal 15°

Grille:	Powder-Coated, Perforated Steel

Connectors:	5-Way Binder

Product Dimensions:
(inches)	H - 11.75" W - 8.88" D - 8.75"
(millimeters)	H - 298.45 W - 225.55 D - 222.25

Product Weight:	19.0 Lbs / 8.6 Kgs

Shipping Dimensions:
(inches)	H -13.50" W -25.50" D -18.25"
(millimeters)	H -342.90 W -647.70 D -463.55

Shipping Weight:	29.5 Lbs / 13.3 Kgs

Available Finish Configurations [±]

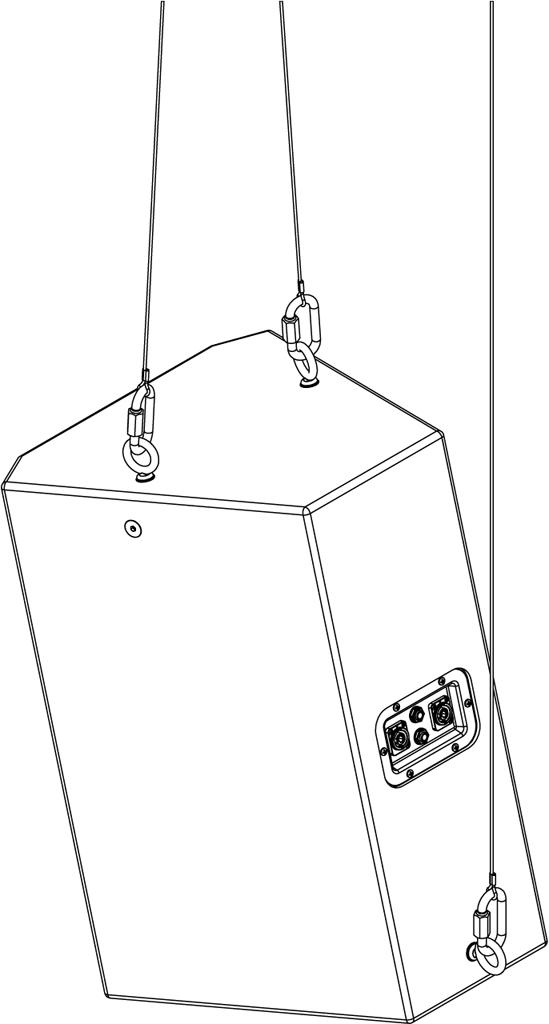

	GT-601-3F
	With Three 2 x 2 Fly Points

	GT-601-M8
	Wall Mount Bracket - 25 # Capacity

	GT-601-O
	No Handle or Pole Mount

	GT-601-U
	With U-Bracket

Compatible Accessories
75-408P Bracket Wall Mount 25 # Capacity Black Sold as Pair	75-822P U Bracket 13" x 3" x 6" White Sold as Pair	78-023 Mount Metal External Adaptor for 1.38" (35mm) Poles
