Available Finish Colors
Black

Unfinished

White

GT-801™

Description[±]

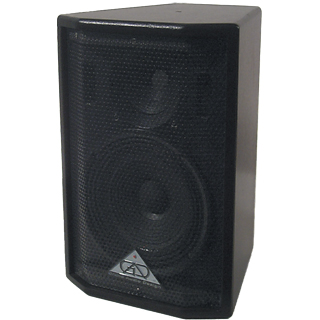

The GAD GT-801™ is a two-way bass reflex loudspeaker system featuring flat frequency response, low distortion and wide dynamic range. Designed for permanent and semi-permanent applications.

The GT-801™ is available with several installation choices including 3/8"-16 threaded mounting points, a U-bracket or a swivel Multimount.

Application[±]

The GT-801™ is designed for near-field applications where a smooth, dynamic range is needed. The GT-801™ is an ideal choice for either analog or digital reproductions where clear, clean response is a must. The GT-801™ boasts wide-range dispersion for portable A/V events or even for side-fill or delay monitoring applications.

Specifications[±]

Power Handling :
(RMS):	150 Watts
(Program):	300 Watts
(Peak to Peak):	600 Watts

Frequency Response:	80 Hz - 19.5 kHz

Sensitivity (1W @ 1M):	97 dB SPL

Nominal Impedance:	8 ohms

Dispersion:	Horizontal 90°
	Vertical 90°

Components:
Low Frequency Driver	8" Cone
Cone Material	Weather-Treated paper


Components:
High Frequency Driver	1" Compression Driver

Crossover Frequency:	2.2 kHz

Enclosure Type:	Trapezoidal 15°

Grille:	Powder-Coated, Perforated Steel

Connectors:	5-Way Binder

Product Dimensions:
(inches)	H - 15.50" W - 10.75" D - 10.75"
(millimeters)	H - 393.70 W - 273.05 D - 273.05

Product Weight:	17.0 Lbs / 7.7 Kgs

Shipping Weight:	28.0 Lbs / 12.6 Kgs

Available Finish Configurations [±]

	GT-801-3F
	With Three 2 x 2 Fly Points

	GT-801-M8
	Wall Mount Bracket - 25 # Capacity

	GT-801-O
	No Handle or Pole Mount

	GT-801-U
	With U-Bracket

Compatible Accessories
75-408P Bracket Wall Mount 25 # Capacity Black Sold as Pair	78-023 Mount Metal External Adaptor for 1.38" (35mm) Poles
