GT 01 Series

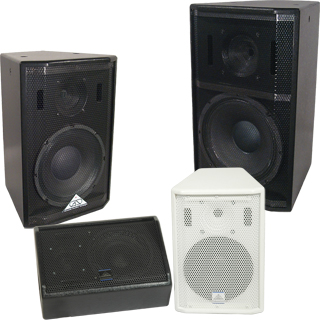

Grund Audio ‘01’ Series loudspeakers are optimized for use in houses of worship and other fixed installations as well as being ideal for corporate presentations, meeting and other special events.

All models in the ‘01’ Series utilize 2-way designs with a horn (with the exception of the GT-5301, a 3-way system). Flat frequency response, low distortion, and wide dynamic range are the key attributes of the GT ‘01’ Series. These enclosures are manufactured from 13-ply birch, and are available in black or white finishes as well as unfinished that can be stained or painted to one’s preferences.

All models utilize a horn that is made from 13-ply birch and carved out of the baffle board. These systems utilize a 90° circular horn pattern where a wide energy spectrum is required—enabling these loudspeakers to provide optimized coverage throughout the space. The horn is strictly a wave device. There is no throat loading, which can induce distortion—effectively delivering the purist sound quality physically possible, with quick and accurate focusing of the high frequencies.

The Grund Audio Design GT ‘01’ Series loudspeakers perform well in clusters for that wide and full array dynamic sound—and mounting / installing these systems is accomplished by the availability of Grund Audio Design’s various hardware options. All models can be outfitted with U-brackets, a swivel wall mount, or 3/8"-16 threaded mounting points, enabling installers to position these loudspeakers in a manner that delivers optimized sound quality and the ability to best incorporate the enclosures into the space aesthetically.

Expand Details

Model
Number
Drivers Frequency
Response
Sensitivity Watt /
ohm
Dispersion
H / V
Dimensions
H x W x D
GT-601 LF: 6" Cone
HF: 1" Compression Driver
65 Hz - 20 kHz 95 dB SPL 100 / 8 Ω 90° / 90° 11.75 × 8.88 × 8.75
GT-801 LF: 8" Cone
HF: 1" Compression Driver
80 Hz - 19.5 kHz 97 dB SPL 150 / 8 Ω 90° / 90° 15.50 × 10.75 × 10.75
GT-1001 LF: 10" Cone
HF: 1" Compression Driver
64 Hz - 19 kHz 98 dB SPL 250 / 8 Ω 90° / 90° 18.75 × 12.75 × 12.75
GT-1201 LF: 12" Cone
HF: 1" Compression Driver
50 Hz - 18 kHz 98 dB SPL 350 / 8 Ω 90° / 90° 23.50 × 14.75 × 14.75
GT-1202 LF: 12" Cone
HF: 2" Compression
HF:Plane Wave
50 Hz - 18 kHz 99 dB SPL 400 / 8 Ω 90° / 90° 23.50 × 14.75 × 14.75
GT-1601 LF: 2 × 51-025
HF: 57-032
HF:58-033
55 Hz - 19 kHz 101 dB SPL 400 / 4 Ω 90° / 90° 23.75 × 12.00 × 11.75
GT-2002 LF: 2 × 10" Cone
HF: 2" Compression
HF:Plane Wave
50 Hz - 18 kHz 101 dB SPL 600 / 4 Ω 90° / 90° 28.75 × 12.75 × 12.75
GT-2301 LF: 12" Cone
MF: 5" Cone
HF: 1" Compression Driver
HF:Plane Wave
50 Hz - 18 kHz 99 dB SPL 350 / 8 Ω 90° / 90° 23.50 × 14.75 × 14.75
GT-5301 LF: 15" Cone
MF: 6" Cone
HF: 1" Compression Driver
HF:Plane Wave
40 Hz - 19.5 kHz 99 dB SPL 350 / 8 Ω 90° / 90° 28.75 × 18.50 × 18.50
GT-801M LF: 8" Cone
HF: 1" Compression Driver
80 Hz - 19.5 kHz 97 dB SPL 150 / 8 Ω 90° / 90° 10.75 × 15.50 × 9.75
GT-1001M LF: 10" Cone
HF: 1" Compression Driver
60 Hz - 18.5 kHz 99 dB SPL 250 / 8 Ω 90° / 90° 12.63 × 18.75 × 11.75
GT-1201M LF: 12" Cone
HF: 1" Compression Driver
50 Hz - 18 kHz 99 dB SPL 400 / 8 Ω 90° / 90° 13.25 × 23.75 × 14.25
GT-1202M LF: 12" Cone
HF: 2" Compression Driver
HF:Plane Wave
50 Hz - 18 kHz 101 dB SPL 400 / 8 Ω 90° / 90° 13.25 × 23.75 × 14.25
GT-1502M LF: 15" Cone
HF: 2" Compression
HF:Plane Wave
40 Hz - 18 kHz 99 dB SPL 400 / 8 Ω 90° / 90° 18.25 × 28.75 × 16.88
GT-1601M LF: 2 × 8" Cone
HF: 1" Compression Driver
HF:Plane Wave
55 Hz - 19 kHz 101 dB SPL 400 / 4 Ω 90° / 90° 10.75 × 23.50 × 9.75
