Available Finish Colors
Black

White

GT-1500™

Description[±]

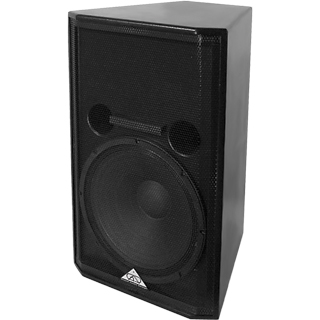

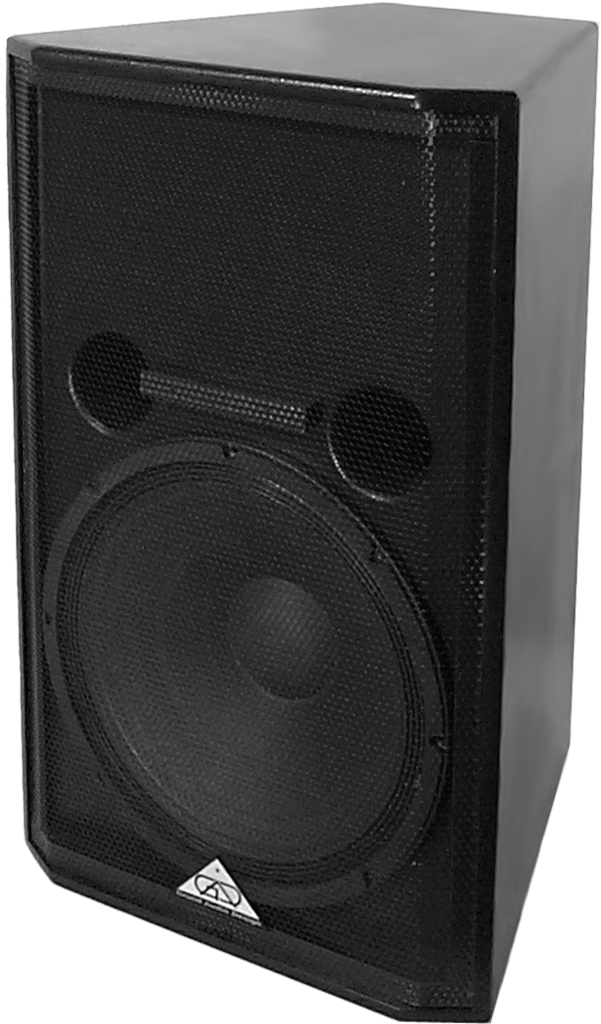

The GAD GT-1500™ is a bass reflex cabinet designed for high output with linear response over the usable band width creating an even bass response. The GT-1500™ is a single 15" with 8mm excursion able to deliver frequencies down to 30Hz.

Application[±]

The GT-1500 is designed for sub cabinet support for hi-packs such as the GT-3020™ , GT-2420™ , GT-1601™, and GT-5301™ adding to the low frequency band-width with smooth, low distortion response down to 40Hz. The GT-1500™ is an ideal choice for either analog or digital soundtracks in cinema, night clubs, house of worship, and other general purpose sound reinforcement applications.

Specifications[±]

Power Handling :
(RMS):	400 Watts
(Program):	800 Watts
(Peak to Peak):	1600 Watts

Frequency Response:	40 Hz - 1000 Hz

Sensitivity (1W @ 1M):	99 dB SPL

Nominal Impedance:	8 ohms

Dispersion:	Omni-directional

Components:
Low Frequency Driver	15" Cone
Cone Material	Weather-Treated paper

Enclosure Type:	Trapezoidal 15°

Grille:	Powder-Coated, Perforated Steel

Connectors:	Two NL4 Speakon®

Product Dimensions:
(inches)	H - 28.75" W - 18.50" D - 18.50"
(millimeters)	H - 730.25 W - 469.90 D - 469.90

Product Weight:	52.0 Lbs / 23.4 Kgs

Shipping Weight:	57.0 Lbs / 25.7 Kgs

Available Finish Configurations [±]

	GT-1500-6F
	With Six 2 x 2 Fly Points

	GT-1500-H
	With handles no pole mount

	GT-1500-HP
	With handles and pole mount

	GT-1500-U
	With U-Bracket

Compatible Accessories
62-028 Fastener Stud Fitting Single Point	62-029 Fastener Stud Fitting Double Point	62-033 Fly Hardware Forged Machine Shoulder Eye Bolt .38" x 1.25"
