Available Finish Colors
Black

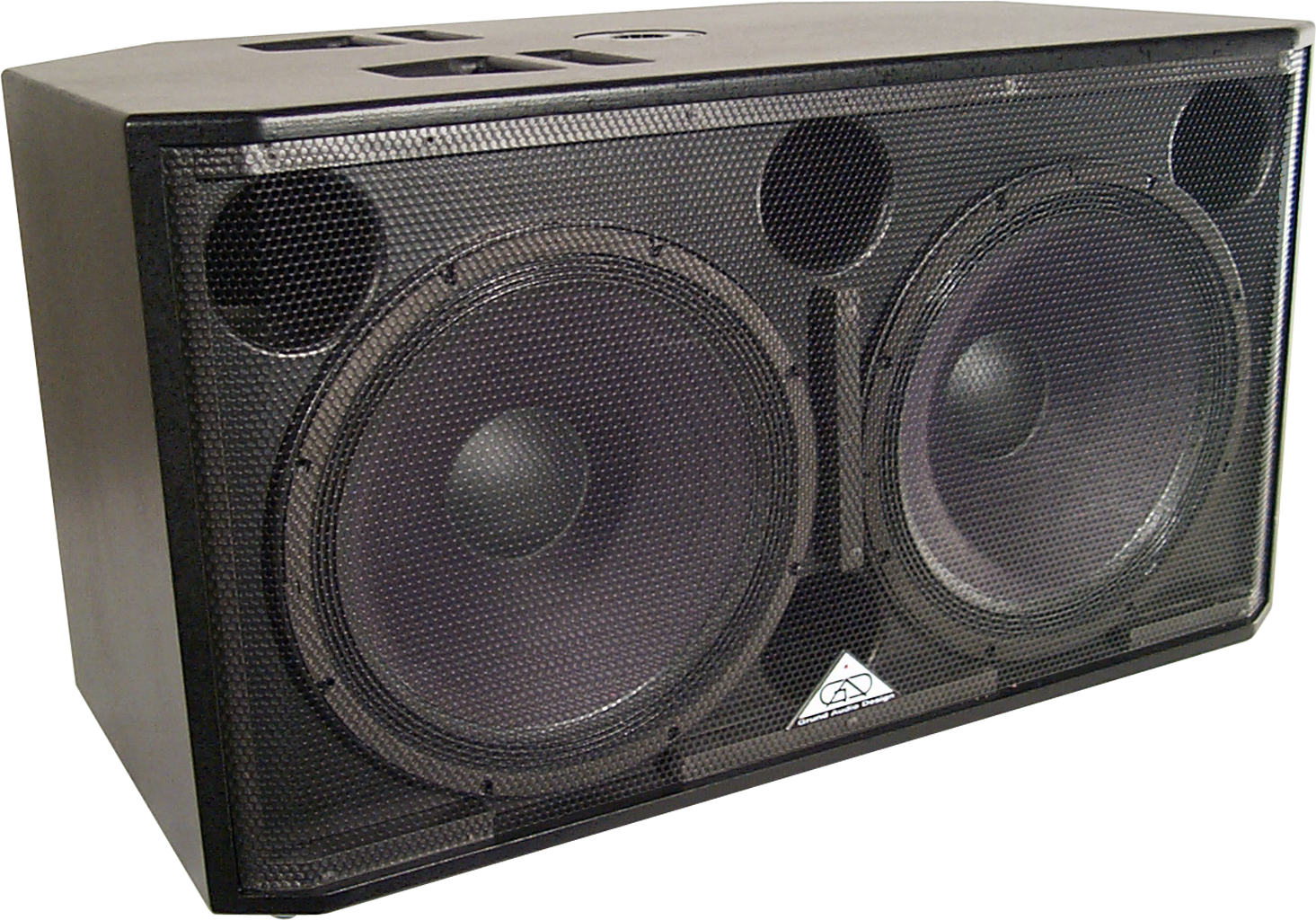

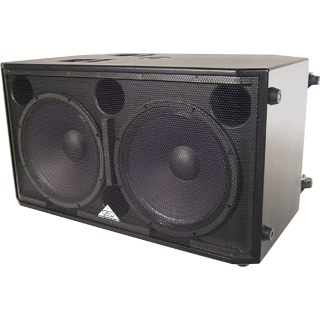

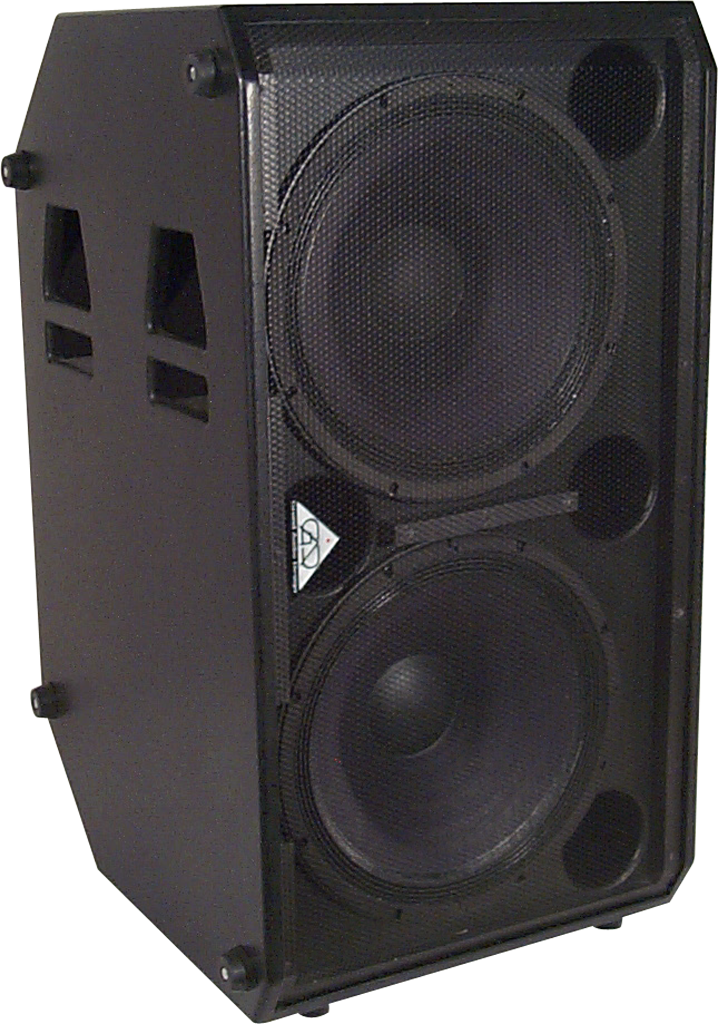

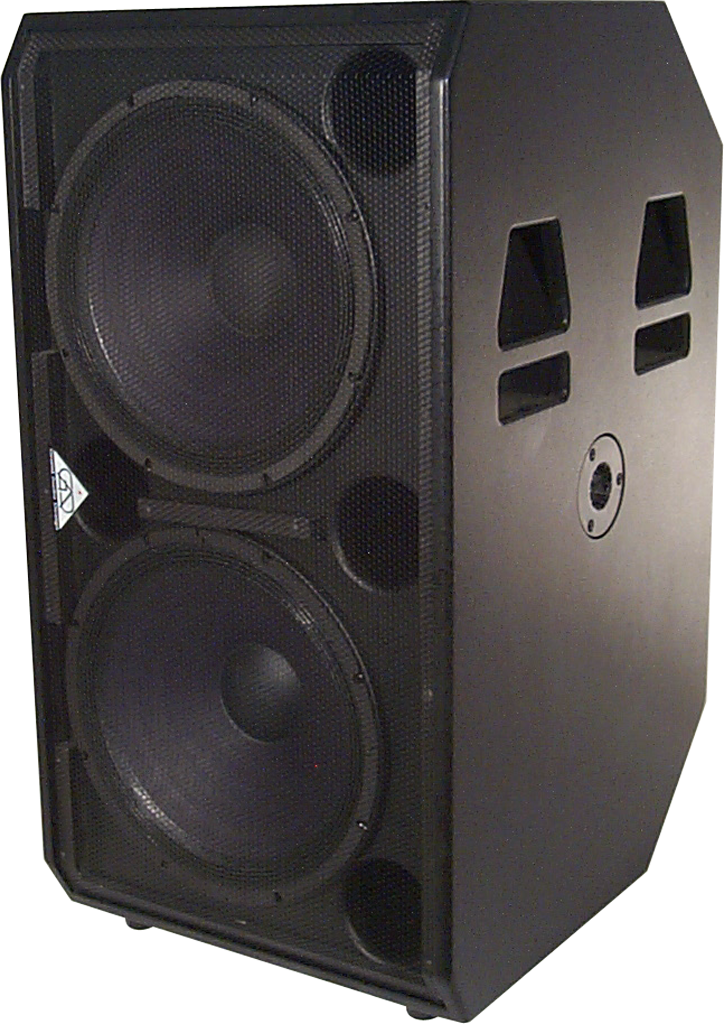

GT-315C™

Description[±]

The GAD GT-315C™ is a bass reflex cabinet designed for high output with linear response over the usable band width creating an even bass response. The GT-315C™ is a dual 15 with 8mm excursion able to deliver frequencies down to 30Hz.

Application[±]

The GT-315C™ is designed for sub cabinet support for hi-packs such as the GT-3020™, GT-2420™, GT-1601™, and GT-5301™ adding to the low frequency band-width with smooth, low distortion response down to 30Hz. The GT-315C™ is an ideal choice for either analog or digital soundtracks in cinema, night clubs, house of worship, and other general purpose sound reinforcement applications.

Specifications[±]

Power Handling :
(RMS):	900 Watts
(Program):	1800 Watts
(Peak to Peak):	3600 Watts

Frequency Response:	37 Hz - 1000 Hz

Sensitivity (1W @ 1M):	100 dB SPL

Nominal Impedance:	4 ohms

Dispersion:	Omni-Directional

Components:
Low Frequency Driver	2 × 15" Cone
Cone Material	Weather-Treated paper

Enclosure Type:	Rectangle

Grille:	Powder-Coated, Perforated Steel

Connectors:	Two NL4 Speakon®

Product Dimensions:
(inches)	H - 20.75" W - 37.75" D - 23.00"
(millimeters)	H - 527.05 W - 958.85 D - 584.20

Product Weight:	140.0 Lbs / 63.0 Kgs

Available Finish Configurations [±]

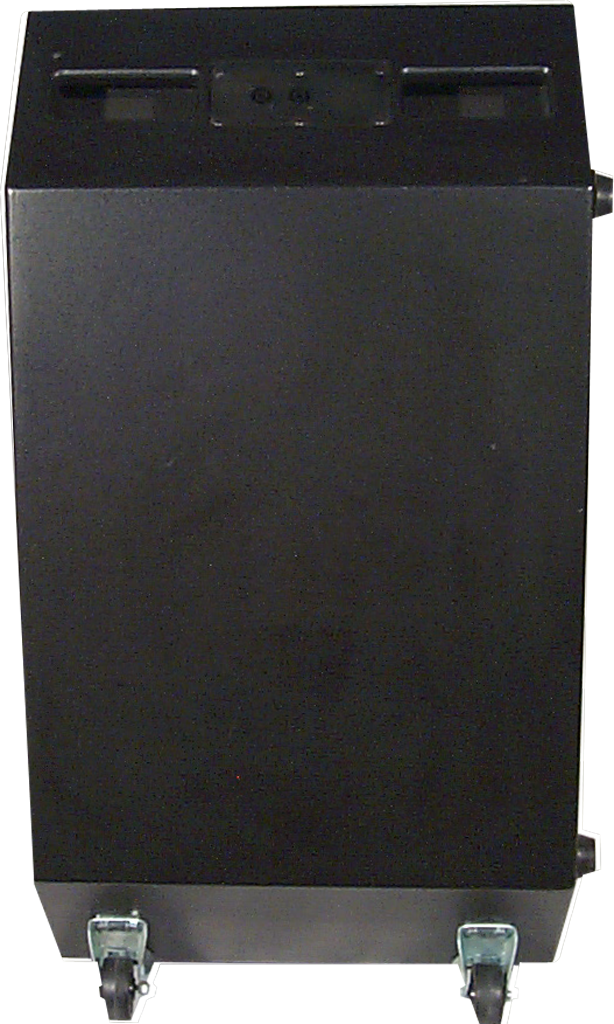

	GT-315C-HP
	With handles and pole mount
