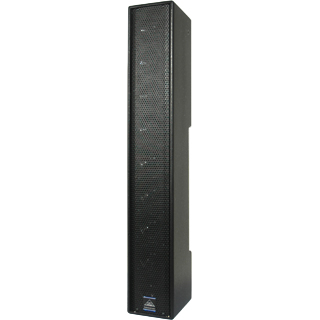

LC-9™

Description[±]

One of the newest additions to the Grund Audio Design family, the LC-9 Column Line Array features a small footprint and lightweight design. The LC-9 Column Line Array isideal for both fixed installation and portable sound reinforcement applications for small tomedium size spaces, including house of worship, education, club, presentation facilities and DJevents.

Manufactured in the USA, the LC-9 enclosure utilizes 13-ply Baltic Birch wood forsuperior performance and cabinet rigidity. This 3.5-inch neo transducer-based system delivershigh speech intelligibility and excellent music reproduction characteristics in a very smallfootprint.

The LC-9 is a passive loudspeaker powered by an optionally available LC SeriesSubwoofer, of which there are three models: the LC-2SA, LC-5SA, and LC-8SA. Thecombination of column array and subwoofer creates a 2.1 system that is wellsuited for a variety of applications.

The LC-9 Column Line Array provides pole mount adapters on both the topand bottom, making them easy to stack multiple units. The enclosures are available inblack or white paint as well as unfinished.

Specifications[±]

Power Handling :

(RMS):

300 Watts

(Program):

600 Watts

(Peak to Peak):

1200 Watts

Frequency Response:

140 Hz - 20 kHz

Sensitivity (1W @ 1M):

98 dB SPL

Nominal Impedance:

8 / 4 ohms

Dispersion:

Horizontal 120°

Vertical 10°

Components:



Low Frequency Driver

9 × 3.5" Cone

Magnet Material

Neodymium

Cone Material

Aluminium

Crossover Frequency:

140 Hz

Enclosure Type:

Rectangle

Enclosure Material:

13-ply Baltic Birch

Enclosure Construction:

Dado and Rabbet Joinery

Enclosure Finish:

2-part Epoxy Spatter Paint

Grille:

Powder-Coated, Perforated Steel

Connectors:

Two NL4 Speakon®

Product Dimensions:

(inches)

H - 32.63" W - 5.38" D - 6.75"

(millimeters)

H - 828.80 W - 136.65 D - 171.45

Product Weight:

15.0 Lbs / 6.8 Kgs

Available Finish Configurations [±]

LC-9-P

With pole Mount
