Available Finish Colors
Black

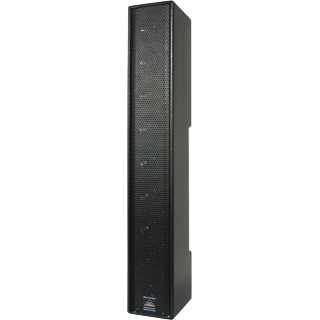

LC-9A™

Description[±]

One of the newest additions to the Grund Audio Design family, the LC-9A Active Column Line Array features a small footprint and lightweight design. The LC-9A Active Column Line Array isideal for both fixed installation and portable sound reinforcement applications for small tomedium size spaces, including house of worship, education, club, presentation facilities and DJevents.

Manufactured in the USA, the LC-9A enclosure utilizes 13-ply Baltic Birch wood forsuperior performance and cabinet rigidity. This 3.5-inch neo transducer-based system delivershigh speech intelligibility and excellent music reproduction characteristics in a very smallfootprint.

The LC-9A is an active loudspeaker powered by an internal 300 watt amplifier. This enclosure provides pole mount adapters on both the topand bottom, making them easy to stack multiple units. The enclosures are available in black or white paint as well as unfinished.

Specifications[±]

Power Handling :
(RMS):	350 Watts
(Program):	700 Watts
(Peak to Peak):	1400 Watts

Frequency Response:	140 Hz - 20 kHz

Sensitivity (1W @ 1M):	98 dB SPL

Nominal Impedance:	8 / 4 ohms

Dispersion:	Horizontal 120°
	Vertical 10°

Components:
Low Frequency Driver	9 × 3.5" Cone
Magnet Material	Neodymium
Cone Material	Aluminium

Crossover Frequency:	140 Hz

Enclosure Type:	Rectangle

Enclosure Material:	13-ply Baltic Birch

Enclosure Construction:	Dado and Rabbet Joinery

Enclosure Finish:	2-part Epoxy Spatter Paint

Grille:	Powder-Coated, Perforated Steel

Connectors:	XLR In and Out

Product Dimensions:
(inches)	H - 32.63" W - 5.38" D - 6.75"
(millimeters)	H - 828.80 W - 136.65 D - 171.45

Product Weight:	22.0 Lbs / 9.9 Kgs

Available Finish Configurations [±]

	LC-9A-P
	With pole Mount
