Technical Specifications (PDF)


Available Finish Colors

Black

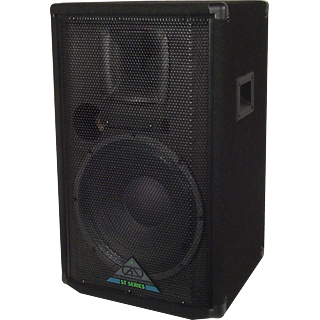

STP-122™

Description[±]

The GAD™ ST Pro Series products are designed with the aid of the most advanced technologies in the audio field. Sophisticated design and measurement equipment, including computer assisted design software, is used for each design to achieve optimized balance and interface between components to give better quality, performance, and longer life.

The STP Series are built with high-quality materials including: multi-layer void-free plywood construction; T-baffle™ bracing; epoxy powder coated, steel perforated grilles; durable, soil-resistant black carpet covering; black metal corners; and complex second or third-order, optimized crossover networks for matched transition between drivers, with full protection circuitry.

All models carry a five year limited warranty.

Application[±]

The STP-122 may be pole-mounted for use as a small, full-range, portable PA system or installed PA. A subwoofer may be added for additional low-end support.

This model is ideal where vocal articulation is important. It is also well-suited for instrument reproduction, main PA, or side-fill applications. Use the STP-122 for DJ's, live bands, clubs, house of worship, corporate A/V, and educational facilities.

Specifications[±]

Power Handling :

(RMS):

300 Watts

(Program):

600 Watts

(Peak to Peak):

1200 Watts

Frequency Response:

55 Hz - 16 kHz

Sensitivity (1W @ 1M):

98 dB SPL

Nominal Impedance:

8 ohms

Dispersion:

Horizontal 90°

Vertical 40°

Components:



Low Frequency Driver

12" Cone

Cone Material

Weather-Treated paper

Components:



High Frequency Driver

1" Compression Driver

Crossover Frequency:

2 kHz

Enclosure Type:

Trapezoidal 8.5°

Grille:

Powder-Coated, Perforated Steel

Connectors:

Two NL4 Speakon®

Product Dimensions:

(inches)

H - 24.50" W - 15.25" D - 15.25"

(millimeters)

H - 622.30 W - 387.35 D - 387.35

Product Weight:

42.0 Lbs / 18.9 Kgs

Shipping Weight:

47.0 Lbs / 21.2 Kgs
