Available Finish Colors
Black

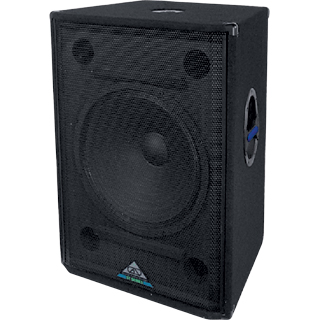

STP-181S™

Description[±]

The GAD™ ST Pro Series products are designed with the aid of the most advanced technologies in the audio field. Sophisticated design and measurement equipment, including computer assisted design software, is used for each design to achieve optimized balance and interface between components to give better quality, performance, and longer life.

The STP Series are built with high-quality materials including: multi-layer void-free plywood construction; T-baffle™ bracing; epoxy powder coated, steel perforated grilles; durable, soil-resistant black carpet covering; and black metal corners.

All models carry a five year limited warranty.

Application[±]

The STP-181S, single 18”, is designed for sub cabinet support adding to the low frequency band-width with smooth, low distortion response down to 35Hz. A top-mounted pole-mount is supplied.

The STP-181S™ provides excellent sub base for clubs, DJ, and live applications. Excellent additional low frequency for all ST Pro models.

Specifications[±]

Power Handling :
(RMS):	600 Watts
(Program):	1200 Watts
(Peak to Peak):	2400 Watts

Frequency Response:	35 Hz - 2000 Hz

Sensitivity (1W @ 1M):	99 dB SPL

Nominal Impedance:	8 ohms

Dispersion:	Omni-Directional

Components:
Low Frequency Driver	18" Cone
Cone Material	Weather-Treated paper

Crossover Frequency:	80-150 kHz

Enclosure Type:	Trapezoidal 8.5°

Grille:	Powder-Coated, Perforated Steel

Connectors:	Two NL4 Speakon®

Product Dimensions:
(inches)	H - 32.50" W - 23.75" D - 20.25"
(millimeters)	H - 825.50 W - 603.25 D - 514.35

Product Weight:	77.0 Lbs / 34.7 Kgs
