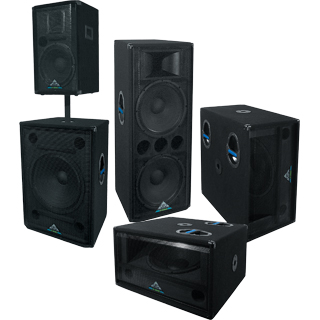

ST Pro Series

The GAD™ ST Pro Series products are designed with the aid of the most advanced technologies in the audio field. Sophisticated design and measurement equipment, including computer assisted design software, is used for each design to achieve optimized balance and interface between components to give better quality, performance, and longer life.

The ST Pro series product line consists of models ranging from very high power medium/long-throw, to low power near field, and subwoofer models from very high to medium power. These products are used by musicians, DJs, rental companies, and many fixed installations including houses of worship, theaters, music halls, meeting rooms, amusement parks, hotels, stadiums, nightclubs, and auditoriums.

The following are some of the quality features: multi-layer void-free plywood construction; T-baffle™ bracing; epoxy powder coated, steel perforated grilles; durable, soil-resistant black carpet covering; black corners; and complex third-order, optimized crossover networks for matched transition between drivers, with full protection circuitry. All models carry a five year limited warranty.

Expand Details

Model
Number
Drivers Frequency
Response
Sensitivity Watt /
ohm
Dispersion
H / V
Dimensions
H x W x D
STP-8 LF: 8" Cone
HF: 1" Compression Driver
61 Hz - 20000 Hz 94 dB SPL 150 / 8 Ω 90° / 40° 17.06 × 10.06 × 8.31
STP-36 LF: 15" Cone
MF: 6" Cone
HF: 1" Compression Driver
40 Hz - 20 kHz 98 dB SPL 300 / 8 Ω 90° / 40° 30.00 × 18.75 × 18.50
STP-52 LF: 15" Cone
HF: 2" VC Compression Driver
40 Hz - 16 kHz 99 dB SPL 300 / 8 Ω 90° / 40° 30.00 × 18.75 × 18.50
STP-5S LF: 40 Hz - 200 Hz 98 dB SPL 400 / 8 Ω 15.38 × 22.75 × 31.13
STP-122 LF: 12" Cone
HF: 1" Compression Driver
55 Hz - 16 kHz 98 dB SPL 300 / 8 Ω 90° / 40° 24.50 × 15.25 × 15.25
STP-102M LF: 10" Cone
HF: 1" Compression Driver
70 Hz - 18 kHz 97 dB SPL 200 / 8 Ω 90° / 40° 12.63 × 19.38 × 12.50
STP-122M LF: 12" Cone
HF: 1" Compression Driver
60 Hz - 16 kHz 98 dB SPL 300 / 8 Ω 70° / 40° 14.25 × 22.25 × 13.63
STP-151S LF: 15" Cone 40 Hz - 2000 Hz 97 dB SPL 300 / 8 Ω Omni-Directional 30.00 × 18.75 × 18.50
STP-152M LF: 15" Cone
HF: 2" VC Compression Driver
50 Hz - 16 kHz 98 dB SPL 300 / 8 Ω 90° / 40° 17.00 × 26.50 × 16.50
STP-181S LF: 18" Cone 35 Hz - 2000 Hz 99 dB SPL 600 / 8 Ω Omni-Directional 32.50 × 23.75 × 20.25
STP-2402 LF: 2 × 12" Cone
HF: 2" VC Compression Driver
40 Hz - 16 kHz 99 dB SPL 600 / 4 Ω 90° / 40° 37.75 × 18.75 × 18.50
STP-3002 LF: 2 × 15" Cone
HF: 2" VC Compression Driver
38 Hz - 16 kHz 99 dB SPL 600 / 4 Ω 90° / 40° 45.25 × 18.75 × 18.50
STP-300S LF: 2 × 15" Cone 35 Hz - 2000 Hz 99 dB SPL 600 / 4 Ω Omni-Directional 45.25 × 23.50 × 20.25
STP-360S LF: 2 × 18" Cone 30 Hz - 2000 Hz 100 dB SPL 1200 / 4 Ω Omni-Directional 44.50 × 23.50 × 20.25
STP-SLP-18 LF: 18" Cone 35 Hz - 2000 Hz 100 dB SPL 600 / 8 Ω Omni-Directional 17.00 × 28.75 × 28.75
