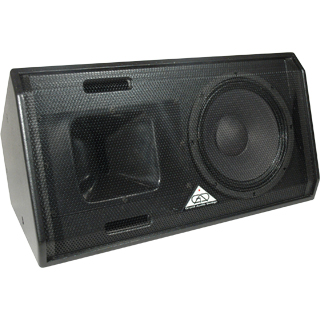

UB-1220™

Power Handling :

(RMS):

400 Watts

(Program):

800 Watts

(Peak to Peak):

1600 Watts

Max Output (1W @ 1M):

132 dB SPL

Frequency Response:

50 Hz - 16 kHz

Sensitivity (1W @ 1M):

101 dB SPL

Power Configuration:

Bi-Amp

Nominal Impedance:

8 ohms

Dispersion:

Horizontal 90°

Vertical 40°

Components:

Low Frequency Driver

12" Cone

Magnet Material

Ferrite

Cone Material

Weather-Treated paper

Components:

High Frequency Driver

2" Compression Driver

Crossover Type:

Passive

Crossover Frequency:

1.5 kHz

Enclosure Type:

Trapezoidal 15°

Enclosure Material:

13-ply Baltic Birch

Enclosure Construction:

Dado and Rabbet Joinery

Enclosure Finish:

Textured Black

Grille:

Powder-Coated, Perforated Steel

Connectors:

Two NL4 Speakon®

Product Dimensions:

(inches)

H - 16.00" W - 28.75" D - 15.75"

(millimeters)

H - 406.40 W - 730.25 D - 400.05

Product Weight:

70.0 Lbs / 31.5 Kgs

UB-1220-6F

With Six 2 x 2 Fly Points

UB-1220-O

No Handle or Pole Mount
