Available Finish Colors
Black

White

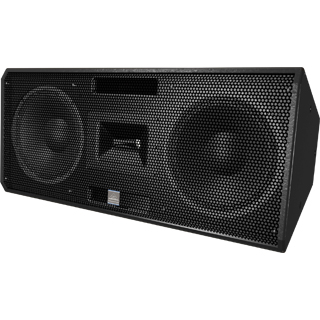

UB-2420™

Description[±]

The Grund Audio UB-2420 is a high-powered design consisting of dual Neo drivers to maintain a symetrical balance of cone dispersion in the system. This is an excellent choice when the front-to-back coverage of a room needs to exceed 40° vertical. When most two-box clusters cannot cover more than a 40° vertical, two UB-2420's arrayed together create a vertical pattern of 80° front-to-back for even coverage. Also, when two boxes are used together, designation of near-field and far-field is possible, making the overall performance of the horizontal and vertical planes smoother and more linear than a typical box.

Application[±]

The UB Series is suitable for houses of worship, nightclubs, theatres, corporate AV, theme parks, restaurants/bars.

The UB Series offers versatile mounting options including U-brackets, wall-brackets, 2 x 2 flyware, or standmount capable.

Specifications[±]

Power Handling :
(RMS):	800 Watts
(Program):	1600 Watts
(Peak to Peak):	3200 Watts

Frequency Response:	40 Hz - 18 kHz

Sensitivity (1W @ 1M):	100 dB SPL

Nominal Impedance:	4 ohms

Dispersion:	Horizontal 90°
	Vertical 40°

Components:
Low Frequency Driver	2 × 12" Cone
Cone Material	Weather-Treated paper


Components:
High Frequency Driver	2" Compression Driver

Crossover Frequency:	1500 Hz

Enclosure Type:	Trapezoidal 15°

Grille:	Powder-Coated, Perforated Steel

Connectors:	Two NL4 Speakon®

Product Dimensions:
(inches)	H - 16.00" W - 36.00" D - 15.75"
(millimeters)	H - 406.40 W - 914.40 D - 400.05

Shipping Weight:	96.0 Lbs / 43.2 Kgs

Available Finish Configurations [±]

	UB-2420-6F
	With Six 2 x 2 Fly Points

	UB-2420-O
	No Handle or Pole Mount

	UB-2420-U
	With U-Bracket
