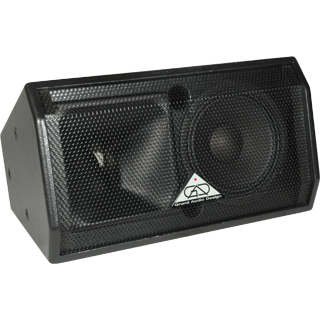

UB-8R™

Power Handling :

(RMS):

200 Watts

(Program):

400 Watts

(Peak to Peak):

800 Watts

Frequency Response:

65 Hz - 19 kHz

Sensitivity (1W @ 1M):

98 dB SPL

Nominal Impedance:

8 ohms

Dispersion:

Horizontal 120°

Vertical 40°/50°/90°

Components:

Low Frequency Driver

8" Cone

Cone Material

Weather-Treated paper

Components:

High Frequency Driver

1" Compression Driver

High Frequency Horn

Asymmetrical

Crossover Frequency:

2 kHz

Enclosure Type:

Trapezoidal 15°

Grille:

Powder-Coated, Perforated Steel

Connectors:

5-Way Binder

Product Dimensions:

(inches)

H - 10.75" W - 19.00" D - 10.75"

(millimeters)

H - 273.05 W - 482.60 D - 273.05

Product Weight:

29.0 Lbs / 13.1 Kgs

Shipping Weight:

33.0 Lbs / 14.9 Kgs

UB-8R-U

With U-Bracket

UB-8R-O

No Handle or Pole Mount

UB-8R-6F

With Six 2 x 2 Fly Points
